TMS320C6713BGDP300

The TMS320C6713BGDP300 from Texas Instruments is a powerful floating-point digital signal processor based on the C67x core. It offers a maximum clock rate of 300MHz, enabling high-speed data processing.

This DSP features 264kB of on-chip RAM, including L1 program and data caches, and a substantial L2 memory architecture. It supports a 32/64-bit data word and provides eight independent functional units, including fixed-point and floating-point ALUs and multipliers. The processor includes a rich peripheral set optimized for audio applications, such as McASP and McBSP interfaces, and an I2C bus supporting multi-master and slave modes.

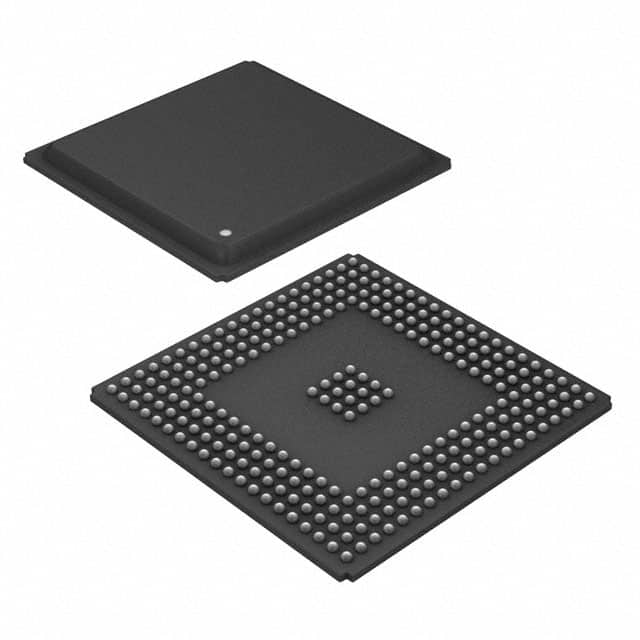

Designed for surface mounting, the TMS320C6713BGDP300 comes in a 272-BGA package (27x27mm). It operates with a supply voltage of 3.3V and has an operating temperature range of -40°C to 105°C (TC), with specific variants available for extended temperature ranges. The device also includes a 32-bit external memory interface (EMIF) for glueless interface to various memory types and an Enhanced Direct-Memory-Access (EDMA) controller.

Key electrical specifications include a 300MHz clock rate, 2400 MIPS/MFLOPS performance, and 3.3ns instruction cycle time. The processor supports byte-addressable memory and features advanced VLIW architecture for efficient code execution. Its extensive peripheral set makes it suitable for demanding signal processing tasks, particularly in audio and multimedia applications.
