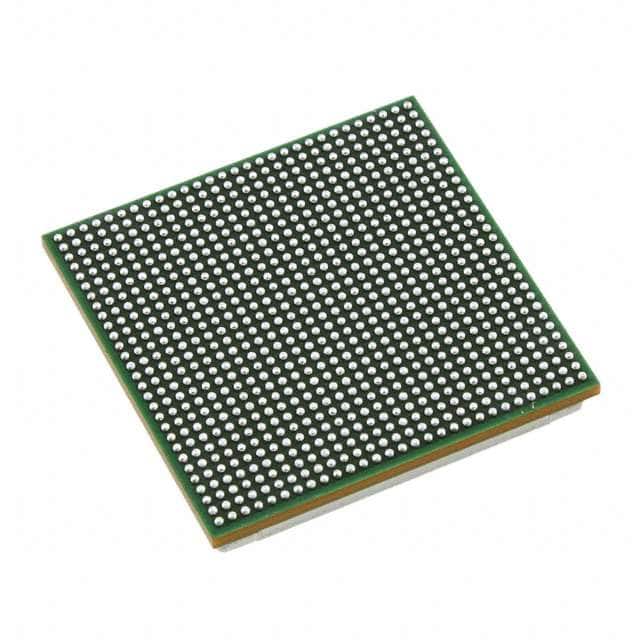

TMS320C6678CYP The Texas Instruments TMS320C6678CYP is a multicore digital signal processor featuring fixed and floating-point capabilities. It operates at clock speeds up to 1GHz and includes 8 DSP cores.
Mfr Part #:

TMS320C6678CYP

Available from 3 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments TMS320C6678CYP is a multicore digital signal processor featuring fixed and floating-point capabilities. It operates at clock speeds up to 1GHz and includes 8 DSP cores.
✓ Total Stock: 8,019 pcs
$ Price Range: $33.86

TMS320C6678CYP Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
6,358 pcs
On Request
6358 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,646 pcs
On Request
1646 pcs On Request 1 On Request On Request On Request On Request On Request
Speed Components Ltd ✓
Non-Authorised Inventory information
15 pcs
On Request
15 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TMS320C6678CYP Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Clock Rate
Interface
Lead Spacing
Mounting Type
Non
On
Operating Temperature
Supplier Device Package
Supplier Package
Type
Voltage
View Similar Products (0)

TMS320C6678CYP Description

Short technical summary and product information.

The Texas Instruments TMS320C6678CYP is a high-performance multicore digital signal processor designed for demanding applications. It features eight TMS320C66x DSP cores, each capable of fixed and floating-point operations, with clock speeds up to 1.4 GHz.



Key specifications include 44.8 GMAC/s fixed-point and 22.4 GFLOP/s floating-point performance per core at 1.4 GHz. The processor boasts 32KB L1P and 32KB L1D caches per core, 512KB L2 cache per core, and 4096KB of shared MSM SRAM. It supports a wide range of interfaces including EBI/EMI, I²C, PCIe Gen 2, SPI, TSIP, UART, and Gigabit Ethernet.



This DSP is suitable for applications requiring significant processing power, such as mission-critical systems, high-performance computing, communications infrastructure, audio/video processing, and imaging. The TMS320C6678CYP is available in a 841-FCBGA package and is designed for surface mounting.



Additional features include a packet accelerator for up to 1 Gbps wire-speed throughput and a security accelerator engine supporting various encryption standards with speeds up to 2.8 Gbps. It also offers 4 lanes of SRIO 2.1 and DDR3-1600 memory support.

TMS320C6678CYP Quick Information

Product Type: DSP (Digital Signal Processor)
Series: TMS320C6678
Canonical Name: TMS320C6678 Fixed and Floating-Point Digital Signal Processor
Subcategory: DSP

TMS320C6678CYP Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TMS320C6678CYP Estimated Pricing

Qty Low High
1+ $33.86 $33.86

Estimated market price range - modelled values for guidance only, not live distributor offers.

TMS320C6678CYP Features

  • Eight 1.4 GHz DSP cores
  • Fixed and floating-point processing
  • 4096KB shared on-chip SRAM
  • Multiple high-speed interfaces
  • 841-FCBGA surface mount package

TMS320C6678CYP Applications

  • Ideal for communication infrastructure
  • Suitable for high-performance computing
  • Used in mission-critical systems
  • Supports audio and video processing
  • Applicable to imaging and analytics

TMS320C6678CYP FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the TMS320C6678CYP?

The operating temperature range is 0°C to 85°C (TC).

What package type is the TMS320C6678CYP available in?

The TMS320C6678CYP is available in an 841-BFBGA, FCBGA package.

What is the RoHS status of the TMS320C6678CYP?

The TMS320C6678CYP is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the TMS320C6678CYP?

The Moisture Sensitivity Level (MSL) is 1 Unlimited.

What is the clock speed of the TMS320C6678CYP DSP?

The TMS320C6678CYP has a clock speed of 1 GHz.

How much on-chip SRAM does the TMS320C6678CYP have?

The TMS320C6678CYP has 8.5MB of on-chip SRAM.

What type of processor is the TMS320C6678CYP?

The TMS320C6678CYP is a Fixed/Floating Point digital signal processor.
