TMS320C6657CZH25 The Texas Instruments TMS320C6657CZH25 is a high-performance DSP with dual fixed and floating-point C66x cores operating up to 1.25 GHz. It offers extensive peripherals and a 625-FCBGA package.
Mfr Part #:

TMS320C6657CZH25

Available from 1 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments TMS320C6657CZH25 is a high-performance DSP with dual fixed and floating-point C66x cores operating up to 1.25 GHz. It offers extensive peripherals and a 625-FCBGA package.
✓ Total Stock: 2,393 pcs
$ Price Range: $93.82

TMS320C6657CZH25 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
2,393 pcs
On Request
2393 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TMS320C6657CZH25 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Clock Rate
Frequency
Industrial Grade
Interface
Medical Grade
Military Grade
Mounting Type
Non
On
Operating Temperature
Supplier Device Package
Supplier Package
Tape & Reel
Type
Voltage
View Similar Products (0)

TMS320C6657CZH25 Description

Short technical summary and product information.

The Texas Instruments TMS320C6657CZH25 is a dual-core DSP from the KeyStone architecture, designed for high-performance applications. Each of its two TMS320C66x DSP cores can operate at frequencies up to 1.25 GHz, delivering significant fixed-point (40 GMAC per core) and floating-point (20 GFLOP per core) processing power.



This device features a 1024KB Multicore Shared Memory Controller (MSMC) and a Memory Protection Unit. It supports a wide array of interfaces including DDR3, Ethernet, PCIe Gen2, SRIO, UART, McBSP, I2C, and SPI, making it versatile for complex system designs.

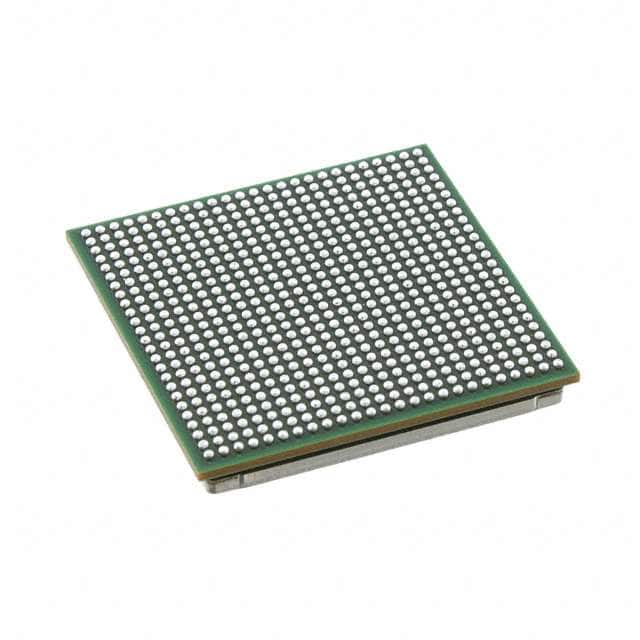

The TMS320C6657CZH25 is housed in a 625-FCBGA (21x21 mm) package and is designed for surface mounting. It operates within a temperature range of -40°C to 100°C (TC), suitable for demanding environments. Its fixed/floating-point type and extensive on-chip memory (2.06MB) make it ideal for signal processing tasks in areas like audio, radar, and networking.



Key electrical specifications include core voltages of 1.0V, 1.5V, and 1.8V. The processor includes hardware accelerators like TCP3d and VCP2 for enhanced performance in specific algorithms. With its robust feature set, the TMS320C6657CZH25 is a powerful solution for embedded processing needs.

TMS320C6657CZH25 Quick Information

Product Type: DSP (Digital Signal Processor)
Canonical Name: Texas Instruments TMS320C6657CZH25 Fixed/Floating Point DSP
Subcategory: Digital Signal Processors

TMS320C6657CZH25 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TMS320C6657CZH25 Estimated Pricing

Qty Low High
1+ $93.82 $93.82

Estimated market price range - modelled values for guidance only, not live distributor offers.

TMS320C6657CZH25 Features

  • Dual C66x DSP cores up to 1.25 GHz.
  • High fixed and floating-point performance.
  • 1024KB Multicore Shared Memory Controller.
  • Extensive peripheral interfaces including PCIe and Ethernet.
  • 625-FCBGA surface mount package.

TMS320C6657CZH25 Applications

  • Ideal for audio and radar processing.
  • Suitable for networking infrastructure.
  • Used in high-performance embedded systems.
  • Supports complex signal processing tasks.

TMS320C6657CZH25 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the maximum clock frequency of the TMS320C6657CZH25 DSP?

The maximum clock frequency for the TMS320C6657CZH25 DSP cores is 1.25 GHz.

How many DSP cores does the TMS320C6657CZH25 have?

The TMS320C6657CZH25 features two TMS320C66x DSP cores.

What is the operating temperature range for this DSP?

The operating temperature range for the TMS320C6657CZH25 is -40°C to 100°C.

What type of package is the TMS320C6657CZH25 in?

The TMS320C6657CZH25 is supplied in a 625-FCBGA (21x21 mm) package.

What are the key interfaces supported by the TMS320C6657CZH25?

Key interfaces include DDR3, EBI/EMI, Ethernet, McBSP, PCIe, I2C, SPI, UART, and UPP.
