| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,745 pcs
|
8745 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Clock Rate | |
| Interface | |
| Mounting Type | |
| Non | |
| On | |
| Operating Temperature | |
| Supplier Device Package | |
| Type | |
| Voltage |

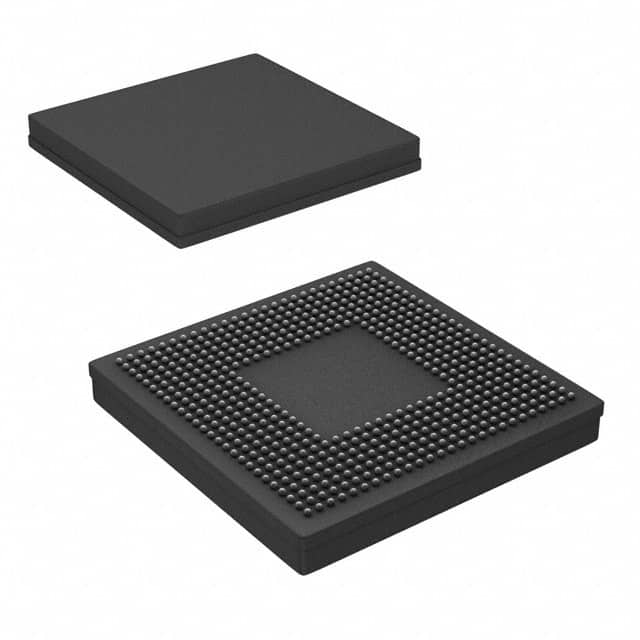

The Texas Instruments TMS320C6416TBGLZ6 is a powerful fixed-point digital signal processor from the TMS320C64x family, featuring VelociTI.2 extensions. It delivers exceptional performance with instruction cycle times as low as 1 ns and clock rates up to 1 GHz, achieving up to 8000 MIPS.
This DSP core is built on an advanced Very-Long-Instruction-Word (VLIW) architecture with eight highly independent functional units, including six ALUs and two multipliers. It supports byte-addressable data access and features a non-aligned load-store architecture. The device includes 1.03MB of on-chip RAM, comprising L1 program and data caches and a flexible L2 unified mapped RAM/cache.
Connectivity is provided through interfaces such as Host Interface, McBSP, PCI, and UTOPIA. The TMS320C6416TBGLZ6 is housed in a 532-FCBGA (23x23 mm) surface-mount package. It operates within a case temperature range of 0°C to 90°C and utilizes a 3.3V supply voltage.
| Qty | Low | High |
|---|---|---|
| 1+ | $161.03 | $161.03 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TMS320C6416TBGLZ6 has a maximum clock rate of 1 GHz.
The TMS320C6416TBGLZ6 offers up to 8000 MIPS.
The operating voltage for the TMS320C6416TBGLZ6 is 3.3V.
The operating temperature range is 0°C to 90°C (Case Temperature).
The TMS320C6416TBGLZ6 is supplied in a 532-FCBGA (23x23 mm) package.
The TMS320C6416TBGLZ6 has 1.03MB of on-chip RAM.
Supported interfaces include Host Interface, McBSP, PCI, and UTOPIA.
