| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,040 pcs
|
9040 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Clock Rate | |
| Interface | |
| Mounting Type | |
| Non | |
| On | |
| Operating Temperature | |
| Package Quantity | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage |
The Texas Instruments TMS320C5545AZQW10 is a fixed-point digital signal processor (DSP) from the TMS320C55x family, designed for high performance and low power consumption.
This device features a core clock rate of up to 120MHz, with instruction cycle times as low as 8.33ns. It supports dual multiply-accumulate (MAC) units, capable of up to 240 Million Multiply-Accumulates per Second (MMACS). The processor includes 320KB of zero-wait state on-chip RAM and 128KB of zero wait-state on-chip ROM. It also incorporates a tightly coupled Fast Fourier Transform (FFT) hardware accelerator.
Connectivity is provided through multiple interfaces including I²C, I²S, MMC/SD, SPI, UART, and USB. The operating voltage range is 1.8V to 3.3V, with an operating temperature range of -10°C to 70°C (TC).

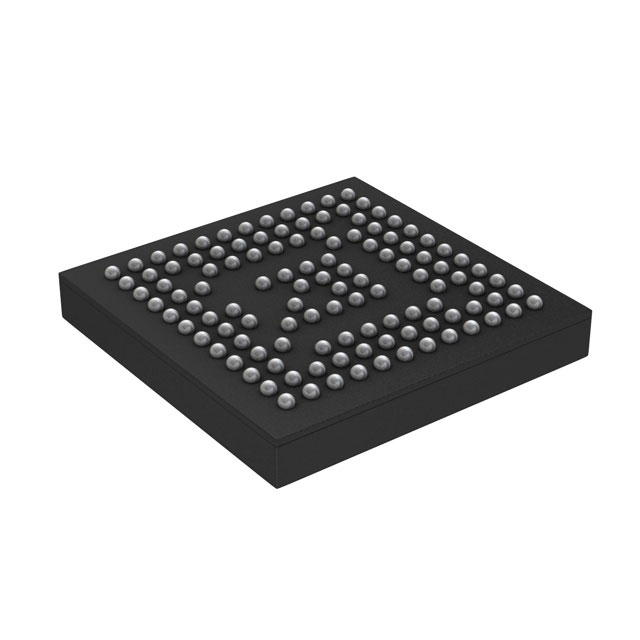

The TMS320C5545AZQW10 is supplied in a 118-BGA MICROSTAR JUNIOR package, designed for surface mounting. The package dimensions are 7mm x 7mm with a 0.5mm pitch and a maximum height of 1mm. It is available in trays of 250 units.
| Qty | Low | High |
|---|---|---|
| 1+ | $33.86 | $33.86 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The clock rate can be 60, 100, or 120 MHz.
It has 320KB of zero-wait state on-chip RAM.
The operating temperature range is -10°C to 70°C.
It is supplied in a 118-BGA MICROSTAR JUNIOR package.
Supported interfaces include I²C, I²S, MMC/SD, SPI, UART, and USB.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1.
