TMS320C5534NZHH10 The Texas Instruments TMS320C5534NZHH10 is a fixed-point digital signal processor. It operates at a 100MHz clock rate and supports multiple interfaces.
Mfr Part #:

TMS320C5534NZHH10

Available from 1 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments TMS320C5534NZHH10 is a fixed-point digital signal processor. It operates at a 100MHz clock rate and supports multiple interfaces.
✓ Total Stock: 290 pcs
$ Price Range: $33.86

TMS320C5534NZHH10 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
290 pcs
On Request
290 pcs On Request 1 On Request On Request 1619+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TMS320C5534NZHH10 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Clock Rate
Interface
Lead Spacing
Mounting Type
Non
On
Operating Temperature
Supplier Device Package
Type
Voltage
View Similar Products (0)

TMS320C5534NZHH10 Description

Short technical summary and product information.

The Texas Instruments TMS320C5534NZHH10 is a fixed-point digital signal processor (DSP) designed for various embedded applications. It features a clock rate of 100MHz and supports a wide range of operating voltages from 1.8V to 3.3V.



This DSP offers multiple interface options including I²C, I²S, MMC/SD, SPI, UART, and USB, providing flexibility for system integration. It has 128kB of ROM and 256kB of on-chip memory.

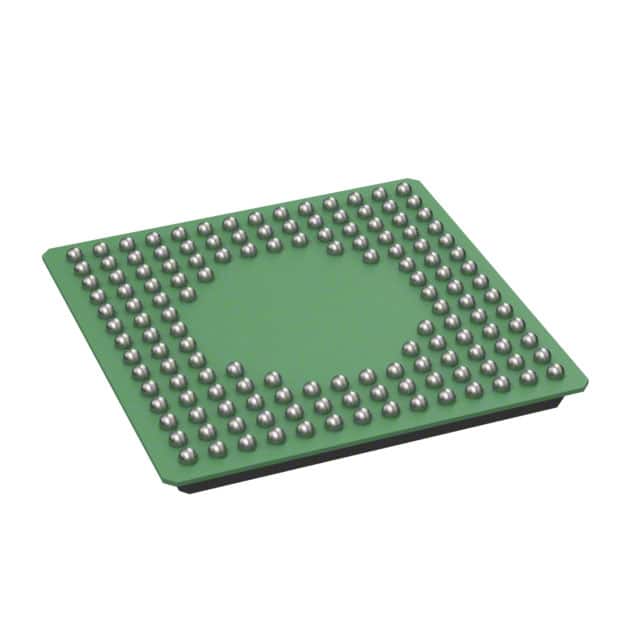

The TMS320C5534NZHH10 is specified for operation within a temperature range of -10°C to 70°C (TC). It comes in a 144-LFBGA package and is designed for surface mount applications.



This component is RoHS3 compliant and has an MSL rating of 1 Unlimited.

TMS320C5534NZHH10 Quick Information

Product Type: Digital Signal Processor
Series: C553x
Canonical Name: Texas Instruments TMS320C5534NZHH10 Digital Signal Processor
Subcategory: Digital Signal Processors

TMS320C5534NZHH10 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TMS320C5534NZHH10 Estimated Pricing

Qty Low High
1+ $33.86 $33.86

Estimated market price range - modelled values for guidance only, not live distributor offers.

TMS320C5534NZHH10 Features

  • Fixed-point digital signal processor.
  • 100MHz clock rate for high performance.
  • Supports multiple interfaces including USB.
  • Wide operating voltage range 1.8V to 3.3V.
  • Surface mount 144-LFBGA package.

TMS320C5534NZHH10 Applications

  • Ideal for embedded signal processing systems
  • Suitable for audio and communications applications
  • Used in industrial automation devices
  • Supports high-density circuit integration

TMS320C5534NZHH10 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the TMS320C5534NZHH10?

The operating voltage is 1.8V, 2.5V, 2.75V, and 3.3V.

What is the operating temperature range?

The operating temperature range is -10°C to 70°C (TC).

What package type is the TMS320C5534NZHH10 in?

It is in a 144-LFBGA package.

What interfaces does this DSP support?

It supports I²C, I²S, MMC/SD, SPI, UART, and USB interfaces.

What is the clock rate of this processor?

The clock rate is 100MHz.
