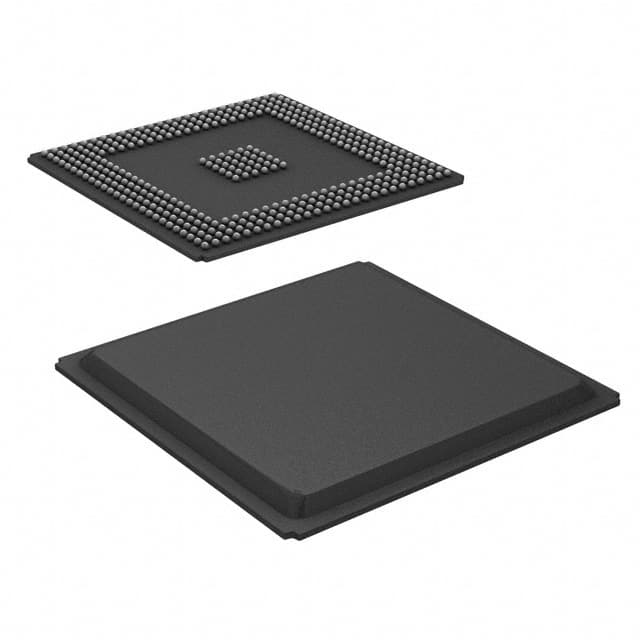

TMS320C44GFW60 The Texas Instruments TMS320C44GFW60 is a floating-point digital signal processor. It operates at 60MHz with 5V I/O and core voltage.
Mfr Part #:

TMS320C44GFW60

Available from 2 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments TMS320C44GFW60 is a floating-point digital signal processor. It operates at 60MHz with 5V I/O and core voltage.
✓ Total Stock: 6,500 pcs
$ Price Range: $33.86

TMS320C44GFW60 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
5,500 pcs
On Request
5500 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TMS320C44GFW60 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Clock Rate
Interface
Lead Spacing
Mounting Type
Non
On
Operating Temperature
Supplier Device Package
Tape & Reel
Type
Voltage
View Similar Products (0)

TMS320C44GFW60 Description

Short technical summary and product information.

The Texas Instruments TMS320C44GFW60 is a high-performance floating-point digital signal processor (DSP) from the TMS320C4x generation. Fabricated using 0.72-µm EPIC CMOS technology, this DSP offers significant processing power for demanding applications.



Key electrical specifications include a 60MHz clock rate, 5.00V operating voltage for both core and I/O, and 8kB of on-chip dual-access RAM. The device supports multiple communication ports and features a six-channel DMA coprocessor. Its floating-point architecture allows for single-cycle conversion to and from IEEE-754 format, as well as single-cycle operations for 1/x and 1/√x.



Packaged in a 388-BGA, the TMS320C44GFW60 is designed for surface mounting. It operates within a temperature range of 0°C to 85°C (TC). The processor is compatible with IEEE-1149.1 (JTAG) boundary-scan standards and supports high data-rate transfers via its external data and address buses.



This DSP is suitable for applications requiring intensive signal processing, parallel processing capabilities, and high data throughput. Its architecture supports concurrent I/O operations, maximizing sustained CPU performance.

TMS320C44GFW60 Quick Information

Product Type: Digital Signal Processor
Series: TMS320C4x
Canonical Name: Texas Instruments TMS320C44GFW60 Digital Signal Processor
Subcategory: Embedded - DSP

TMS320C44GFW60 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TMS320C44GFW60 Estimated Pricing

Qty Low High
1+ $33.86 $33.86

Estimated market price range - modelled values for guidance only, not live distributor offers.

TMS320C44GFW60 Features

  • 60MHz clock rate for high performance.
  • Floating-point DSP architecture.
  • 8kB on-chip dual-access RAM.
  • 5.00V core and I/O voltage.
  • Surface mount 388-BGA package.

TMS320C44GFW60 Applications

  • High-performance signal processing.
  • Applications requiring parallel processing.
  • Systems needing high data throughput.
  • Embedded control systems.

TMS320C44GFW60 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the clock rate of the TMS320C44GFW60?

The clock rate of the TMS320C44GFW60 is 60MHz.

What type of processor is the TMS320C44GFW60?

The TMS320C44GFW60 is a Floating Point Digital Signal Processor.

What is the on-chip RAM size for the TMS320C44GFW60?

The TMS320C44GFW60 has 8kB of on-chip RAM.

What is the operating voltage for the TMS320C44GFW60?

The operating voltage for the TMS320C44GFW60 is 5.00V for both core and I/O.

What is the operating temperature range of the TMS320C44GFW60?

The operating temperature range for the TMS320C44GFW60 is 0°C to 85°C (TC).

What package type is the TMS320C44GFW60?

The TMS320C44GFW60 is supplied in a 388-BGA package and is surface mountable.
