| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
960 pcs
|
960 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Clock Rate | |
| Industrial Grade | |
| Interface | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Non | |
| On | |
| Operating Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Type | |
| Voltage |
The Texas Instruments TMS320C30GEL40 is a 32-bit floating-point Digital Signal Processor (DSP) manufactured using 0.7-mm EPIC CMOS technology. This processor is designed for high-performance signal processing tasks, capable of executing up to 50 MFLOPS.
Key electrical specifications include a 5.00V operating voltage and a 40MHz clock rate. The device supports 16-/32-bit integer and 32-/40-bit floating-point operations, with a 32-bit instruction word and 24-bit addresses. It features two 1K x 32-bit on-chip RAM blocks and one 4K x 32-bit on-chip ROM block. On-chip peripherals include two serial ports, two 32-bit timers, and a DMA coprocessor for concurrent I/O and CPU operation.

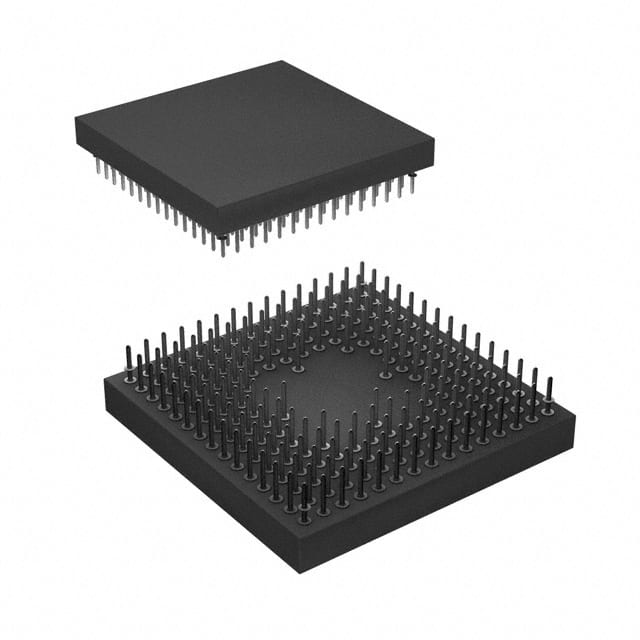

Packaged in a 181-CPGA (39x39) through-hole configuration, the TMS320C30GEL40 is suitable for applications requiring robust signal processing capabilities. It offers features like block-repeat capability, zero-overhead loops, and conditional calls/returns, enhancing its efficiency in complex algorithms.
| Qty | Low | High |
|---|---|---|
| 1+ | $33.86 | $33.86 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 5.00V.
The package is a 181-BCPGA Exposed Pad.
The operating temperature range is 0°C to 85°C (TC).
Yes, it is RoHS3 Compliant.
The clock rate is 40MHz.
It is a 32-bit high-performance floating-point Digital Signal Processor (DSP).
