TMS320C25GBA The Texas Instruments TMS320C25GBA is a second-generation digital signal processor. It features an 80ns instruction cycle time and operates on a single 5V supply.
Mfr Part #:

TMS320C25GBA

Available from 3 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments TMS320C25GBA is a second-generation digital signal processor. It features an 80ns instruction cycle time and operates on a single 5V supply.
✓ Total Stock: 7,513 pcs
$ Price Range: $219.84

TMS320C25GBA Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
3,600 pcs
On Request
3600 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
3,421 pcs
On Request
3421 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
492 pcs
On Request
492 pcs On Request 1 On Request On Request 03+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TMS320C25GBA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Clock Rate
Interface
Lead Spacing
Mounting Type
Non
On
Operating Temperature
Supplier Device Package
Supply Voltage
Type
Voltage
View Similar Products (0)

TMS320C25GBA Description

Short technical summary and product information.

The Texas Instruments TMS320C25GBA is a 16/32-bit single-chip digital signal processor from the second-generation TMS320 family. It combines the flexibility of a high-speed controller with the numerical capability of an array processor.



Key specifications include an 80-ns instruction cycle time, 544 words of on-chip data RAM, and 4K words of on-chip program ROM. It supports a 128K words of data/program space and features a 32-bit ALU/Accumulator with a 16x16-bit multiplier producing a 32-bit product. The device operates on a single 5V supply.



This DSP is designed for applications requiring high-speed signal processing. It includes features like block moves for data management, repeat instructions for efficient program space utilization, and a serial port for direct codec interface. It also supports synchronous multiprocessor configurations and wait states for communication with slower off-chip memories or peripherals.

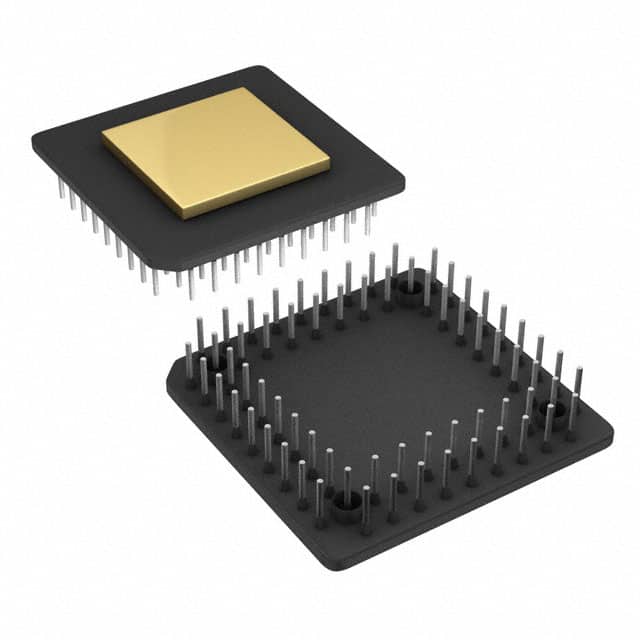

The TMS320C25GBA is available in a 68-pin CPGA package and is designed for through-hole mounting. It operates within a temperature range of -40°C to 85°C.

TMS320C25GBA Quick Information

Product Type: DSP (Digital Signal Processor)
Series: Second-Generation
Canonical Name: TMS320C25GBA Digital Signal Processor
Subcategory: DSP

TMS320C25GBA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TMS320C25GBA Estimated Pricing

Qty Low High
1+ $219.84 $219.84

Estimated market price range - modelled values for guidance only, not live distributor offers.

TMS320C25GBA Features

  • 80-ns instruction cycle time.
  • 544 words of on-chip data RAM.
  • 4K words of on-chip program ROM.
  • Single 5-V supply operation.
  • 68-pin CPGA package for through-hole mounting.

TMS320C25GBA Applications

  • High-speed signal processing.
  • Direct codec interface applications.
  • Synchronous multiprocessor systems.
  • Communication with slow peripherals.

TMS320C25GBA FAQs

6 frequently asked questions generated from this part’s specifications.
What is the instruction cycle time for the TMS320C25GBA?

The instruction cycle time is 80 ns.

How much on-chip data RAM does the TMS320C25GBA have?

It has 544 words of on-chip data RAM.

What is the program ROM size for the TMS320C25GBA?

The device has 4K words of on-chip program ROM.

What is the supply voltage for the TMS320C25GBA?

The device operates on a single 5V supply.

What is the operating temperature range for this DSP?

The operating temperature range is -40°C to 85°C.

What type of package is the TMS320C25GBA in?

It is available in a 68-pin CPGA package.
