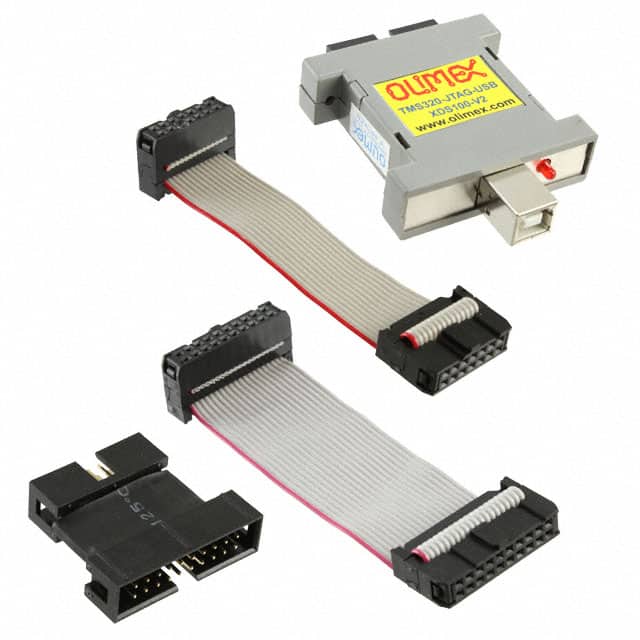

The Olimex TMS320-XDS100-V2 is a high-speed USB 2.0 JTAG emulator and programmer based on the Texas Instruments XDS100v2 reference design. It is designed for programming, real-time emulation, and debugging of TMS320C28x, TMS320C54x, TMS320C55x, TMS320C64x+, TMS320C674x, TMS320C66x DSPs as well as ARM 9, Cortex R4, Cortex A8, Cortex A9, and Cortex M3 cores.
The emulator operates over a target voltage range of 1.65V to 5.0V and is powered entirely via USB, requiring no external power supply. It features cable-break detection, target power loss detection, and adaptive clocking. The board measures 50mm x 40mm and includes a 20cm USB cable.
Connectivity is provided through a standard 0.1" 2x10 pin JTAG connector with TI layout. The package includes a 2x7 pin TI JTAG adapter and a 2x10 pin ARM JTAG adapter for compatibility with a wide range of target boards. The emulator is compatible with Code Composer Studio 4.x, 5.x, and UniFlash software.
| Qty | Low | High |
|---|---|---|
| 1+ | $78.61 | $78.61 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It supports TMS320C28x, TMS320C54x, TMS320C55x, TMS320C64x+, TMS320C674x, TMS320C66x DSPs, and ARM 9, Cortex R4, Cortex A8, Cortex A9, and Cortex M3 cores.
The target voltage range is 1.65V to 5.0V.
It is compatible with Code Composer Studio 4.x, 5.x, and UniFlash.
No, it is powered via USB and does not need external power.
It uses a 0.1" 2x10 pin JTAG connector with TI layout and includes a 2x7 pin TI adapter and a 2x10 pin ARM adapter.
The board measures 50mm x 40mm and the cable is 20cm long.
Yes, it is listed as RoHS3 Compliant.
