| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
13 pcs
|
13 pcs | On Request | 1 | On Request | On Request | 14+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

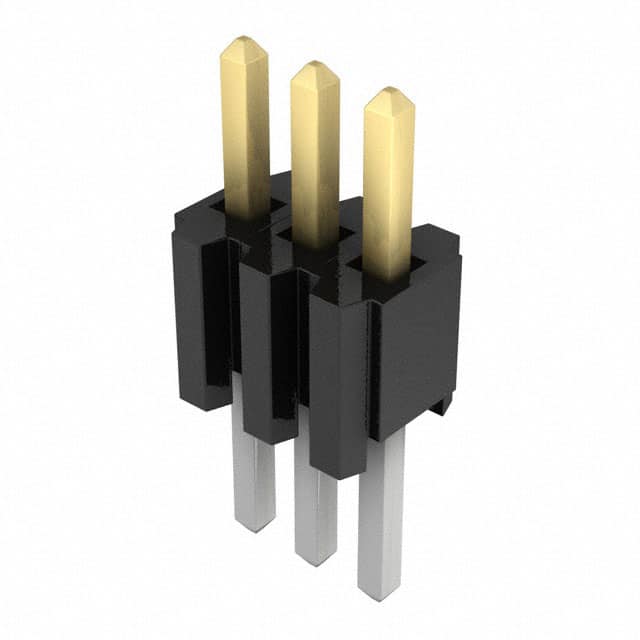

The Samtec TMS-103-02-S-S is a 3-position, single row, through hole, unshrouded header from the TMS series. It features a 1.27mm (0.050") pitch and is designed for board-to-board applications. The header has a push-pull fastening type and mates with Samtec SMS, SLM, and RSM series connectors.
Electrical and mechanical specifications include a current rating of 5A per contact (2 pins powered) and an operating temperature range of -55°C to +125°C with tin plating. The contacts are made of phosphor bronze with a 30.0µin (0.76µm) tin finish. The insulator is black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating.
The header is through-hole mounted with solder termination. The lead style is -02, with an overall contact length of 0.320" (8.13mm), a mating contact length of 2.54mm (0.100"), and an insulation height of 2.54mm (0.100"). The part is lead-free solderable.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.62 | $0.62 |
| 50+ | $0.48 | $0.48 |
| 100+ | $0.39 | $0.39 |
| 500+ | $0.35 | $0.35 |
| 1,000+ | $0.33 | $0.33 |
| 2,000+ | $0.31 | $0.31 |
| 5,000+ | $0.27 | $0.27 |
| 10,000+ | $0.22 | $0.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 1.27mm (0.050").
It has 3 positions in a single row.
The current rating is 5A per contact (2 pins powered).
It is a through hole mount header with solder termination.
The operating temperature range is -55°C to +125°C.
The contacts are phosphor bronze with a 30.0µin (0.76µm) tin finish.
The insulator is black liquid crystal polymer (LCP) with a UL94 V-0 rating.
