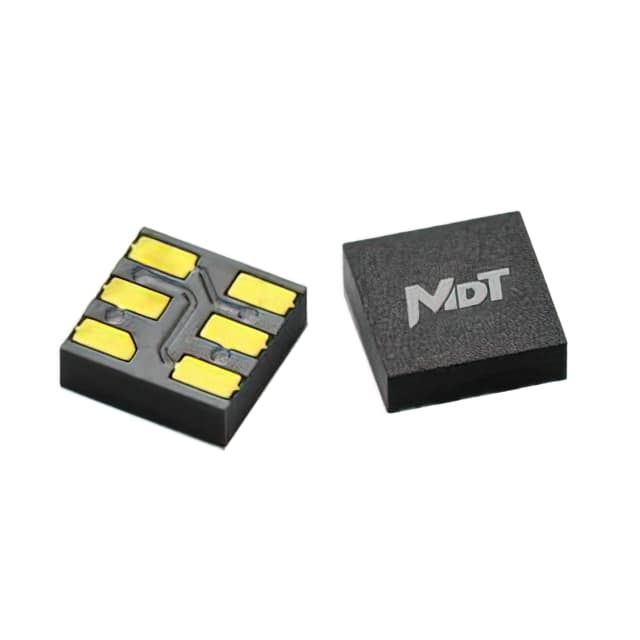

Mfr Part #:

TMR4013

Mfr Name: MULTIDIMENSION

Description:

TMR SENSOR MAG GEAR 0.8/1.6MM

Stock on Request

TMR4013 Description

Short technical summary and product information.

TMR SENSOR MAG GEAR 0.8/1.6MM

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

TMR4003

MULTIDIMENSION

TMR SENSOR MAG GEAR 0.75/1.5MM

TMR4011

MULTIDIMENSION

TMR SENSOR MAG GEAR 0.4/0.8MM

TMR4001

MULTIDIMENSION

TMR SENSOR MAG GEAR 0.25/0.5MM

Category	Position Sensors - Angle, Linear Position Measuring
Manufacturer Name	MULTIDIMENSION
Actuator Type	External Magnet, Not Included
For Measuring	Angle, Linear
Mounting Type	Surface Mount
Operating Temperature	-40°C ~ 125°C (TA)
Output	Wheatstone Bridge
Output Signal	Cosine, Sine
Resistance	9 kΩ
Supplier Device Package	6-LGA (3x3)
Technology	Magnetoresistive
Termination Style	SMD (SMT) Tab
Voltage	7V
