| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

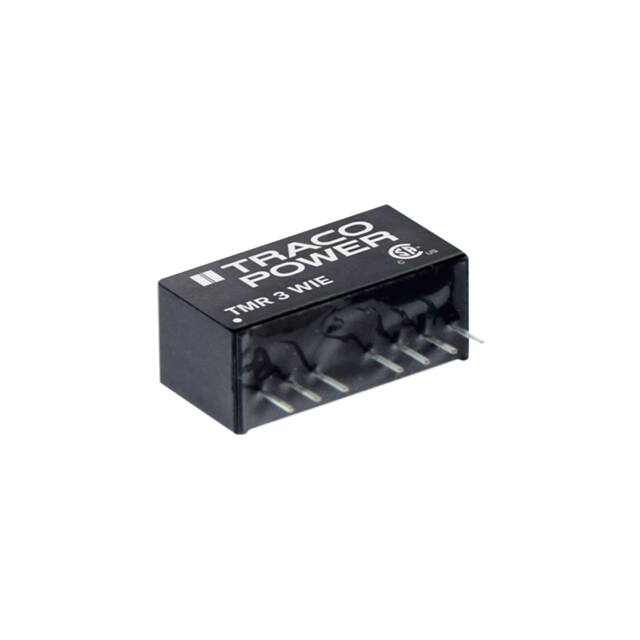

The Traco Power TMR 3-2421WIE is a 3-watt isolated DC/DC converter module from the TMR 3WIE series. It provides dual regulated outputs of +5V and -5V, each capable of delivering 300mA. The module accepts a wide 4:1 input voltage range of 9 to 36 VDC, with a nominal input of 24 VDC. Typical efficiency is 79%.
The converter features 1600 VDC I/O isolation, continuous short circuit protection with input power limiting (2.5W max), and remote on/off control. Line regulation is 0.5% and load regulation is 1%, with voltage set accuracy of ±1%. Ripple and noise is limited to 75 mVp-p at 20 MHz bandwidth.
The module is housed in a compact SIP-8 plastic package (8-SIP, 7 leads) with through-hole mounting. It occupies only 2.0 cm² of board space. The operating temperature range is -40°C to +85°C with derating. Applications include industrial electronics, instrumentation, and communication equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $17.85 | $17.85 |
| 10+ | $17.52 | $17.52 |
| 20+ | $17.45 | $17.45 |
| 50+ | $17.24 | $17.24 |
| 100+ | $16.62 | $16.62 |
| 200+ | $16.26 | $16.26 |
| 500+ | $16.00 | $16.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
9 V to 36 V (nominal 24 V).
Dual outputs: +5 V at 300 mA and -5 V at 300 mA.
1600 VDC.
-40°C to +85°C with derating.
8-SIP Module, 7 leads, through-hole mounting.
RoHS3 Compliant (unverified).
79%.
