| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

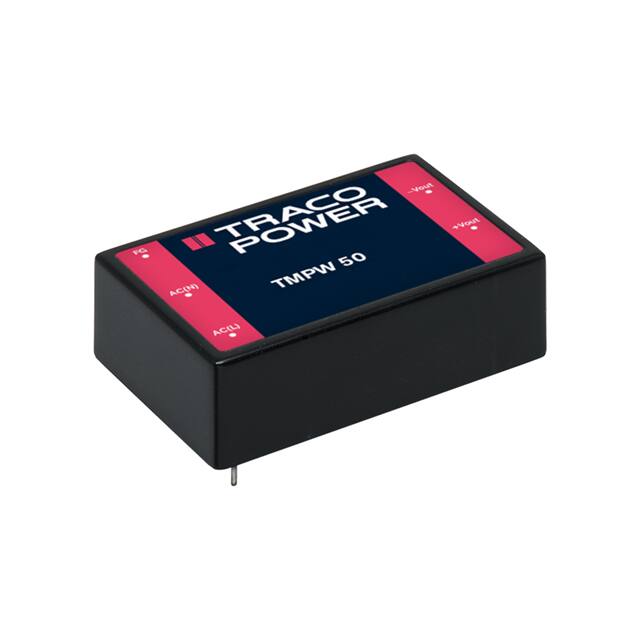

The Traco Power TMPW 50-115 is a versatile AC/DC converter designed for various applications, including household appliances and ITE commercial equipment. This enclosed module delivers 50W of power with a 15V output and a current rating of 3.333A.
It operates over a wide input voltage range of 90 to 305 VAC or 100 to 250 VDC, offering flexibility in power source selection. The converter boasts an efficiency of 88% and operates within a temperature range of -40°C to 70°C, with derating applied at higher temperatures.
Designed for easy integration, the TMPW 50-115 features Through Hole mounting and comes in a 4-DIP module package. It has received approvals from agencies such as CB and cURus, indicating compliance with relevant safety standards. The unit has a single output channel.
90 ~ 305 VAC or 100 ~ 250 VDC.
4-DIP Module.
-40°C to 70°C with derating.
15V DC.
3.333A.
88%.
74.2mm x 47.0mm x 23.1mm.
