| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| Power (Watts) | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

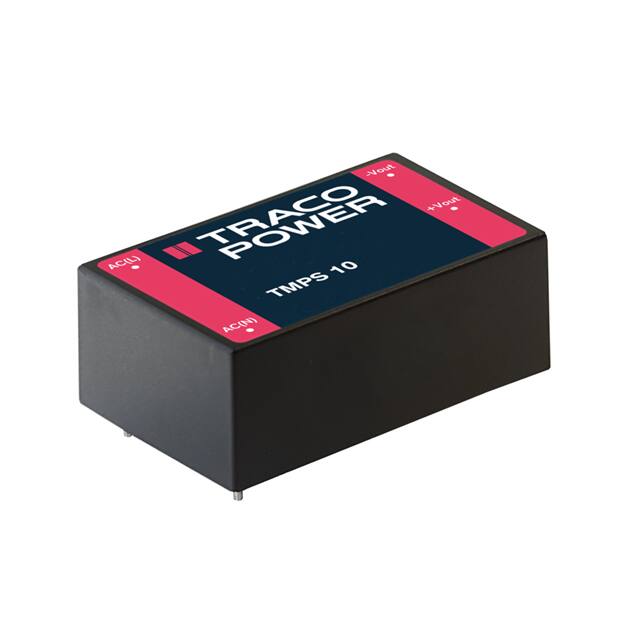

The Traco Power TMPS 10-109 is an ultra-compact 10 Watt AC/DC power supply module designed for PCB mounting. It provides a regulated 9VDC output at 1.1A, with a peak current capability of 1.44A for up to 30 seconds.
This module operates with a universal input voltage range of 85-264 VAC or 120-370 VDC, making it suitable for global applications. It boasts high efficiency up to 83% and low no-load power consumption, meeting ErP directive requirements.
The TMPS 10-109 is certified to IEC/EN 60335-1 and UL 62368-1 standards, making it suitable for household and industrial appliances, as well as IT solutions. It features reinforced I/O isolation of 4000 VAC and operates within a temperature range of -25°C to +70°C.
Packaged in a compact 1" x 1.5" footprint with through-hole mounting, this power supply module is ideal for space-critical applications. It includes features like universal input, EMI compliance to EN 55032 Class B, and continuous short circuit protection.
The TMPS 10-109 provides a nominal output voltage of 9 VDC with a maximum output current of 1.1A.
The operational AC input voltage range is 85 to 264 VAC. The rated range is 100 to 240 VAC. It also accepts a DC input of 120 to 370 VDC.
The operating temperature range is -25°C to +70°C.
The TMPS 10-109 is housed in a 4-DIP module with through-hole mounting.
Yes, it includes short circuit protection with automatic recovery.
The module features reinforced I/O isolation of 4000 VAC.
The typical efficiency is 83%.
