| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Package / Case | |
| Power | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

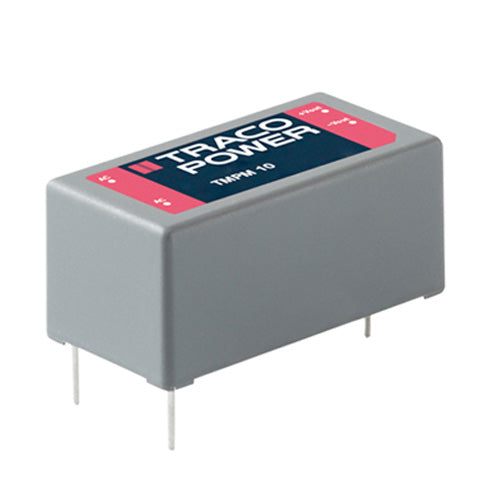

The Traco Power TMPM 10115 is a fully encapsulated AC/DC power module designed for PCB mounting. It offers a compact, low-profile plastic casing suitable for space-critical applications.
This module operates with a universal input voltage range of 85-264 VAC, providing a stable 15VDC output at a maximum current of 667mA, delivering up to 10W of power. It boasts an efficiency of 75% and operates within a temperature range of -25°C to 70°C.
Key features include protection class II compliance and approvals such as IEC/EN 60950-1 and UL 60950-1. The TMPM 10115 is designed for industrial control equipment and commercial electronic equipment, offering protection against short circuits and overload conditions.
With its through-hole mounting type and compact dimensions (52.4mm x 27.2mm x 23.5mm), this AC/DC converter is suitable for various embedded systems and applications requiring reliable power conversion in potentially polluted or dusty environments.
85-264 VAC (47-440 Hz) or 120-370 VDC.
15 VDC at 0.667 A.
10 W.
75%.
-25°C to 70°C with derating.
4-DIP module with through hole mounting.
IEC/EN/UL 62368-1 (per datasheet) and IEC/EN 60950-1 & UL 60950-1 (per manufacturer page).
