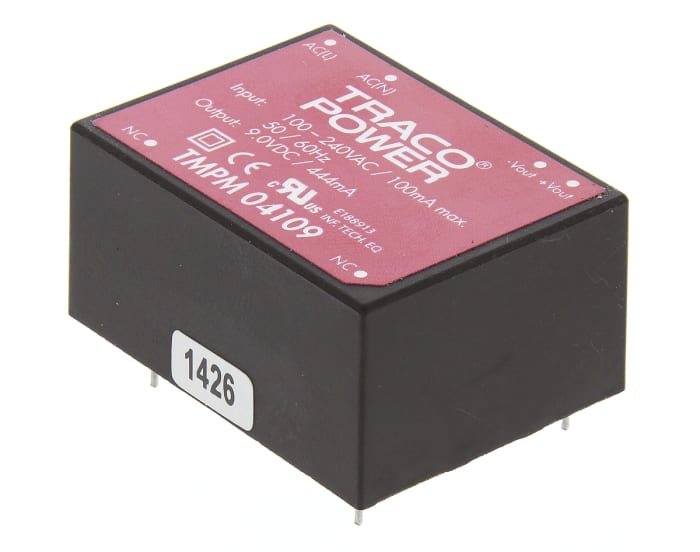

The Traco Power TMPM 04109 is a compact, encapsulated AC/DC power module designed for reliable power conversion in various applications. It operates with a universal input voltage range of 85-264 VAC and provides a stable 9V DC output at up to 444mA, delivering a total of 4W of power.
This module features a high efficiency of 75% and is designed for through-hole mounting, making it suitable for direct PCB integration. Its fully encapsulated construction protects against pollution and dust, making it ideal for demanding environments. The operating temperature range is -25°C to 60°C.
Key features include protection against short circuit and overload, and compliance with safety standards such as CB, CE, cULus, and cURus. The ultra-compact and low-profile design makes it a cost-effective solution for space-critical applications in commercial and industrial electronic equipment.
The TMPM 04109 accepts 85-264 VAC or 120-370 VDC input.
It is a through-hole 7-DIP module with 6 leads and encapsulated construction.
The operating temperature range is -25°C to 60°C.
It provides a single 9 VDC output at 444 mA.
The output power is 4 W with 75% efficiency.
The supported input frequency range is 47-440 Hz.
The module measures 36.5 mm x 27.0 mm x 17.1 mm.
