TMP708AIDBVR The Texas Instruments TMP708AIDBVR is a resistor-programmable temperature switch with an active-low, open-drain output. It operates from a 2.7V to 5.5V supply and features selectable hysteresis.
Mfr Part #:

TMP708AIDBVR

Available from 4 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments TMP708AIDBVR is a resistor-programmable temperature switch with an active-low, open-drain output. It operates from a 2.7V to 5.5V supply and features selectable hysteresis.
✓ Total Stock: 212,457 pcs
$ Price Range: $0.15

TMP708AIDBVR Available from 4 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
200,889 pcs
On Request
200889 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
7,750 pcs
On Request
7750 pcs On Request 1 On Request On Request 21+ On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
2,739 pcs
On Request
2739 pcs On Request 1 On Request On Request 21+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,079 pcs
On Request
1079 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TMP708AIDBVR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accuracy
Current
Features
Mounting Type
Operating Temperature
Output
Output Function
Output Type
Selectable Hysteresis
Supplier Device Package
Switching Temperature
Tape & Reel
Trip Temperature Threshold
Voltage
View Similar Products (0)

TMP708AIDBVR Description

Short technical summary and product information.

The TMP708AIDBVR from Texas Instruments is a fully-integrated, resistor-programmable temperature switch designed for reliable thermal monitoring. It allows the temperature threshold to be set using a single external 1% resistor, offering flexibility across its operating range.



This device operates within a supply voltage range of 2.7V to 5.5V and maintains functionality across an extended temperature range of -40°C to 125°C. Key electrical characteristics include a low quiescent current of typically 40µA and an open-drain, active-low output stage. The hysteresis is pin-selectable, offering either 10°C or 30°C, which helps prevent rapid switching near the threshold.

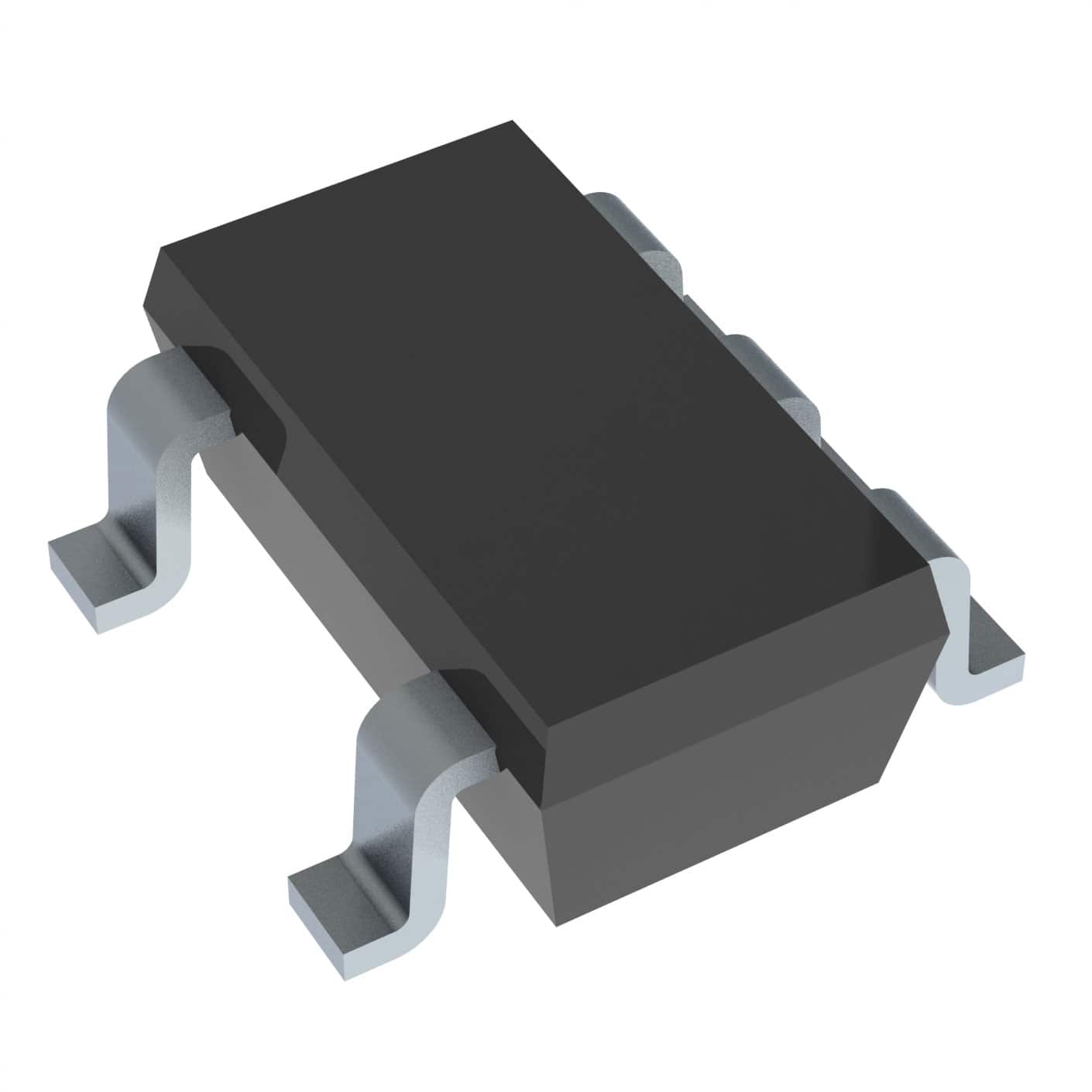

The TMP708AIDBVR is housed in a compact 5-pin SOT-23 package, suitable for surface-mount applications. Its accuracy is typically ±0.5°C, with a maximum of ±3°C specified between 60°C and 100°C. This makes it suitable for applications requiring precise temperature detection and switching.



This temperature switch is ideal for various applications requiring over-temperature detection or thermal regulation. Its programmable threshold and selectable hysteresis provide design engineers with the necessary tools for custom thermal management solutions.

TMP708AIDBVR Quick Information

Product Type: Temperature Switch
Canonical Name: TMP708 Resistor-Programmable Temperature Switch
Subcategory: Solid State

TMP708AIDBVR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TMP708AIDBVR Estimated Pricing

Qty Low High
1+ $0.15 $0.15

Estimated market price range - modelled values for guidance only, not live distributor offers.

TMP708AIDBVR Features

  • Resistor-programmable temperature threshold.
  • Pin-selectable 10°C or 30°C hysteresis.
  • Wide operating temperature range: -40°C to 125°C.
  • Low quiescent current: typically 40µA.
  • Open-drain, active-low output stage.

TMP708AIDBVR Applications

  • Thermal monitoring and protection.
  • Temperature threshold detection.
  • System power management.
  • Over-temperature alerts.

TMP708AIDBVR FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the TMP708AIDBVR?

The operating voltage range is 2.7V to 5.5V.

What is the operating temperature range for the TMP708AIDBVR?

The operating temperature range is -40°C to 125°C.

What is the typical quiescent current of the TMP708AIDBVR?

The typical quiescent current is 40µA.

What hysteresis options are available for the TMP708AIDBVR?

The hysteresis is pin-selectable to 10°C or 30°C.

What is the package type for the TMP708AIDBVR?

The package type is SOT-23-5.
