| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,530 pcs
|
1530 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
55 pcs
|
55 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Accuracy | |
| Automotive Grade | |
| Features | |
| Industrial Grade | |
| Interface Type | |
| Lead Spacing | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Output Type | |
| Package Description | |
| Remote Channels | |
| Resolution | |
| Sensing Temperature | |
| Sensor Type | |
| Supplier Device Package | |
| Supply Current (Maximum @ 1 SPS, All Channels Active) | |
| Supply Current (Maximum @ Shutdown Mode) | |
| Test Condition | |
| Voltage | |
| accuracy (@ -40 °C ~ 100 °C) | |
| accuracy (@ -40 °C ~ 125 °C) |
The TMP464AIRGTR from Texas Instruments is a high-accuracy, low-power digital temperature sensor designed for monitoring local and remote temperatures. It features a 5-channel capability, supporting one local sensor and up to four remote diode-connected temperature zones. This device utilizes an I2C or SMBus compatible two-wire interface for communication.
Key specifications include an operating temperature range of -40°C to 125°C with an accuracy of ±0.75°C. The supply and logic voltage range is from 1.7V to 3.6V. The sensor offers a resolution of 13 bits and includes features like ALERT and Shutdown Mode. Advanced features such as series resistance cancellation and offset correction are also integrated.

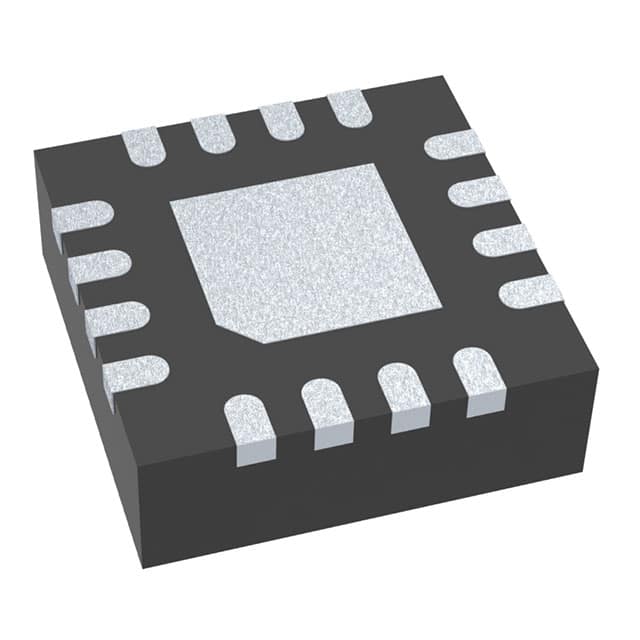

Packaged in a 16-VFQFN exposed pad, the TMP464AIRGTR is designed for surface mounting. Its ability to aggregate temperature measurements across a system makes it suitable for complex systems like servers and telecommunications equipment, aiding in tighter guard bands and reduced board complexity. Typical use cases involve monitoring temperatures across processors such as MCUs, GPUs, and FPGAs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.81 | $0.81 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 125°C.
The accuracy is ±0.75°C.
The supply voltage range is 1.7V to 3.6V.
It uses an I2C or SMBus compatible two-wire interface.
It supports up to four remote diode-connected temperature zones.
It is available in a 16-VFQFN exposed pad package.
