| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,736 pcs
|
7736 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accuracy | |
| Current | |
| Features | |
| Functional Safety Capable | |
| Hysteresis Options | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature (@ Extended) | |
| Operating Temperature (@ Temperature Grade 1) | |
| Operating Temperature (Unspecified condition) | |
| Operating Voltage | |
| Output | |
| Output Function | |
| Output Type | |
| Selectable Hysteresis | |
| Switching Temperature | |
| Trip Temperature Channel A | |
| Trip Temperature Channel B | |
| Trip Temperature Threshold | |
| Voltage | |
| accuracy (Maximum @ −55 °C to +130 °C) | |
| accuracy (Maximum) |

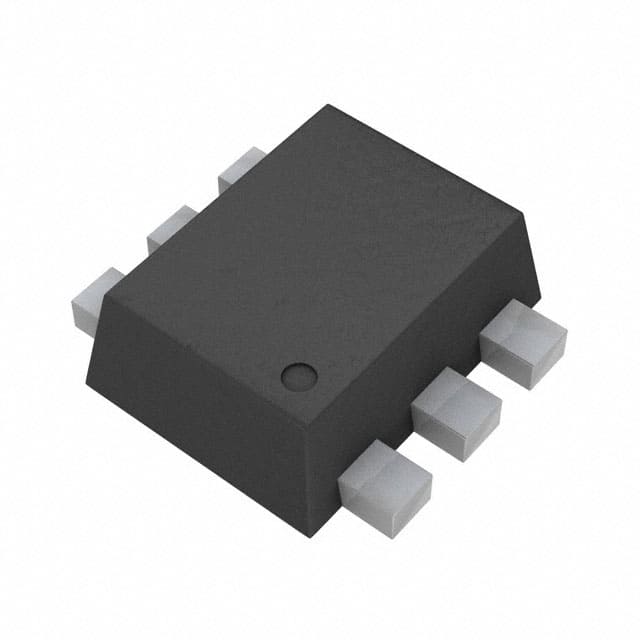

The Texas Instruments TMP390AQDRLRQ1 is an ultra-small, dual-channel temperature switch designed for automotive applications. It offers independent overtemperature and undertemperature detection with resistor-programmable trip points and hysteresis options. The device operates over an extended temperature range of -55°C to +130°C and features an accuracy of ±3.0°C across this range.
With ultra-low power consumption of 0.5 µA typical, the TMP390AQDRLRQ1 is suitable for power-sensitive designs. It supports a supply voltage range of 1.62 V to 5.5 V and provides open-drain outputs. The trip temperatures and hysteresis are programmed using external resistors, allowing for flexibility in design. Channel A is for overtemperature detection, with trip points from +30°C to +124°C in 2°C steps. Channel B is for undertemperature detection, with trip points from -50°C to +25°C in 5°C steps. Hysteresis options include 5°C, 10°C, and 20°C.
This temperature switch is AEC-Q100 qualified and functional safety-capable, making it ideal for automotive infotainment systems, cameras, and radar/lidar applications. It is available in a compact SOT-563 (1.60-mm × 1.20-mm) 6-pin package, suitable for surface mounting.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.41 | $0.41 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -55°C to +130°C.
The accuracy is ±1.5°C from 0°C to +70°C and ±3.0°C from -55°C to +130°C.
Hysteresis options are 5°C, 10°C, and 20°C.
The supply voltage range is 1.62 V to 5.5 V.
It has open-drain outputs.
It is available in a SOT-563 6-pin package.
Yes, the TMP390AQDRLRQ1 is AEC-Q100 qualified.
