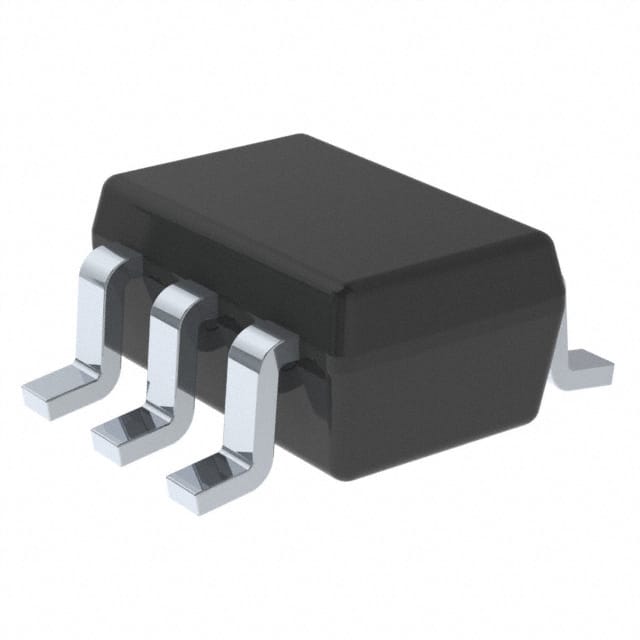

TMP300BIDCKT The Texas Instruments TMP300BIDCKT is a low-power, resistor-programmable temperature switch with an analog output. It operates over a wide voltage range and temperature range.
Mfr Part #:

TMP300BIDCKT

Available from 3 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments TMP300BIDCKT is a low-power, resistor-programmable temperature switch with an analog output. It operates over a wide voltage range and temperature range.
✓ Total Stock: 18,559 pcs
$ Price Range: $1.09

TMP300BIDCKT Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
12,053 pcs
On Request
12053 pcs On Request 1 On Request On Request On Request On Request On Request
Fe Components ✓
Non-Authorised Inventory information
4,500 pcs
On Request
4500 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
2,006 pcs
On Request
2006 pcs On Request 1 On Request On Request 24+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TMP300BIDCKT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accuracy
Current
Features
Mounting Type
Operating Temperature
Operating Voltage
Output
Output Function
Output Type
Selectable Hysteresis
Storage Temperature
Supplier Device Package
Supply Current
Switching Temperature
Tape & Reel
Trip Temperature Threshold
Voltage
View Similar Products (0)

TMP300BIDCKT Description

Short technical summary and product information.

The Texas Instruments TMP300BIDCKT is a resistor-programmable temperature switch featuring an analog output. This device is designed for power-sensitive systems requiring reliable thermal management.



Key electrical specifications include a wide supply voltage range from 1.8V to 18V and a low typical supply current of 110µA. The operating temperature range spans from -40°C to 150°C. The accuracy is ±1°C typical at +25°C and ±2°C maximum over the operating temperature range. The sensor gain is 10mV/°C.



This temperature switch offers a programmable trip point and built-in hysteresis. The output type is open drain, with an active low output function. It is available in a SC-70-6 package and is suitable for surface mount applications.



The TMP300BIDCKT is RoHS3 compliant, has an MSL of 1 Unlimited, and is REACH unaffected. Its compact size and low power consumption make it ideal for various thermal monitoring applications.

TMP300BIDCKT Quick Information

Product Type: Temperature Switch
Canonical Name: Texas Instruments TMP300BIDCKT Resistor-Programmable Temperature Switch and Analog Out Temperature Sensor
Subcategory: Thermostat

TMP300BIDCKT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TMP300BIDCKT Estimated Pricing

Qty Low High
1+ $1.09 $1.09

Estimated market price range - modelled values for guidance only, not live distributor offers.

TMP300BIDCKT Features

  • Resistor-programmable temperature switch
  • Wide 1.8V to 18V supply voltage range
  • Operating temperature from -40°C to 150°C
  • Open-drain output with active low function
  • SC-70-6 surface mount package

TMP300BIDCKT Applications

  • Ideal for thermal monitoring systems
  • Suitable for power-sensitive applications
  • Used in systems requiring temperature alerts
  • Compact design for space-constrained boards

TMP300BIDCKT FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating temperature range of the TMP300BIDCKT?

The operating temperature range is -40°C to 150°C.

What is the supply voltage range for the TMP300BIDCKT?

The supply voltage range is 1.8 V to 18 V.

What type of output does the TMP300BIDCKT have?

The TMP300BIDCKT has an open-drain output.

What is the typical accuracy of the TMP300BIDCKT at 25°C?

The typical accuracy at +25°C is ±1°C.

What package is the TMP300BIDCKT supplied in?

The TMP300BIDCKT is supplied in a SC-70-6 package.
