| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
960 pcs
|
960 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accuracy | |
| Features | |
| Interface Type | |
| Lead Spacing | |
| Mounting Type | |
| Operating Temperature | |
| Output Type | |
| Resolution | |
| Sensing Temperature | |
| Sensor Type | |
| Shutdown Current | |
| Supplier Device Package | |
| Supply Current | |
| Tape & Reel | |
| Test Condition | |
| Voltage | |
| accuracy (Maximum @ -20 °C ~ 50 °C) |
The Texas Instruments TMP117AIYBGR is a digital temperature sensor designed for high-accuracy measurements. It operates across a wide temperature range of -55°C to 150°C, making it suitable for various demanding applications.
This sensor features an I2C and SMBus compatible interface, simplifying integration into existing systems. With a resolution of 16 bits, it provides precise temperature readings. Key features include programmable alert limits, NIST traceability, and a 48-bit general-purpose EEPROM for system correction or data storage.

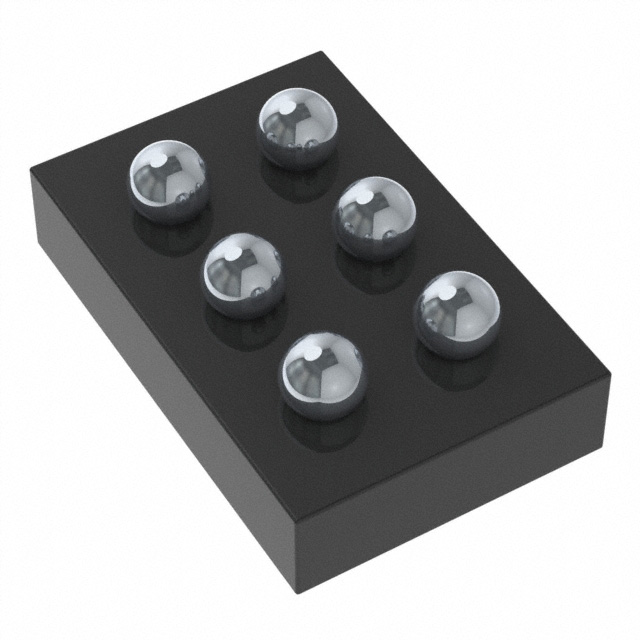

The TMP117AIYBGR is available in a compact 6-DSBGA package, ideal for space-constrained designs. Its surface mount capability further enhances its ease of use in manufacturing processes. The device also boasts low power consumption, with a typical supply current of 3.5 µA during a 1-Hz conversion cycle and a shutdown current of 150 nA.
This sensor is also noted for its medical grade compliance, meeting ASTM E1112 and ISO 80601-2-56 standards, and serves as a replacement for PT100, PT500, and PT1000 RTDs.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.48 | $2.48 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -55°C to 150°C.
The accuracy is ±0.1°C from -20°C to 50°C, and ±0.3°C from -55°C to 150°C.
It uses an I2C and SMBus compatible interface.
The supply voltage range is 1.8V to 5.5V.
The resolution is 16 bits.
It is available in a 6-DSBGA (1.49x0.95) package and a 6-UFBGA, DSBGA package.
