| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,650 pcs
|
4650 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
203 pcs
|
203 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accuracy | |
| Features | |
| Local Temperature Sensor | |
| Mounting Type | |
| Operating Temperature | |
| Output Type | |
| Resolution | |
| Sensing Temperature | |
| Sensor Type | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Test Condition | |
| Voltage | |
| Voltage Supply |
The TMP006AIYZFT from Texas Instruments is a fully integrated MEMS thermopile sensor designed for noncontact temperature sensing. It measures the temperature of an object by absorbing passive infrared energy.
This sensor operates within a local temperature range of -40°C to 125°C and can measure object temperatures beyond this range as long as the device itself stays within its operating limits. It features a two-wire serial interface compatible with I2C and SMBus protocols, offering a resolution of 15 bits.
The device supports a supply voltage range of 2.2V to 5.5V and includes a shutdown mode for low power consumption. The accuracy is specified as ±1°C maximum from 0°C to 60°C and ±1.5°C maximum from -40°C to 125°C.

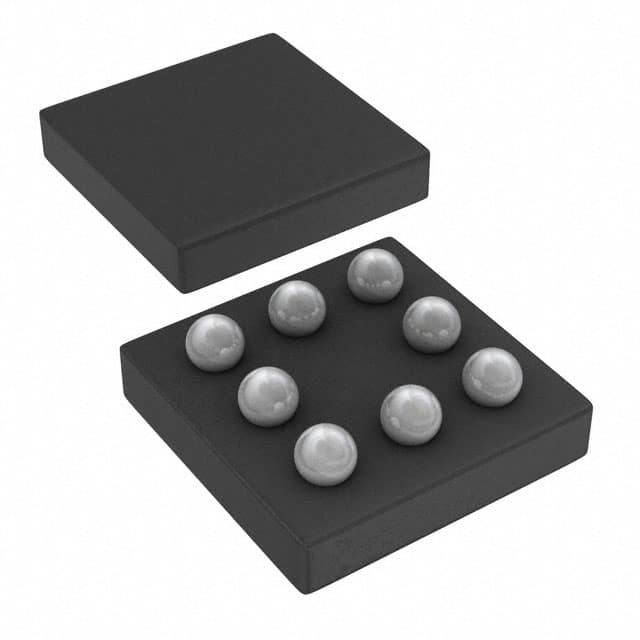

Packaged in an 8-DSBGA (8-UFBGA) surface-mount package, the TMP006AIYZFT is suitable for various applications requiring noncontact temperature measurement, such as case temperature monitoring, laser printers, and power relays.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.01 | $1.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 125°C.
The TMP006AIYZFT is a digital, infrared (IR) thermopile sensor.
The supply voltage is between 2.2V and 5.5V.
It uses an I2C/SMBus compatible interface.
The accuracy is ±1°C (max) from 0°C to 60°C and ±1.5°C (max) from -40°C to 125°C.
It is supplied in an 8-DSBGA package.
