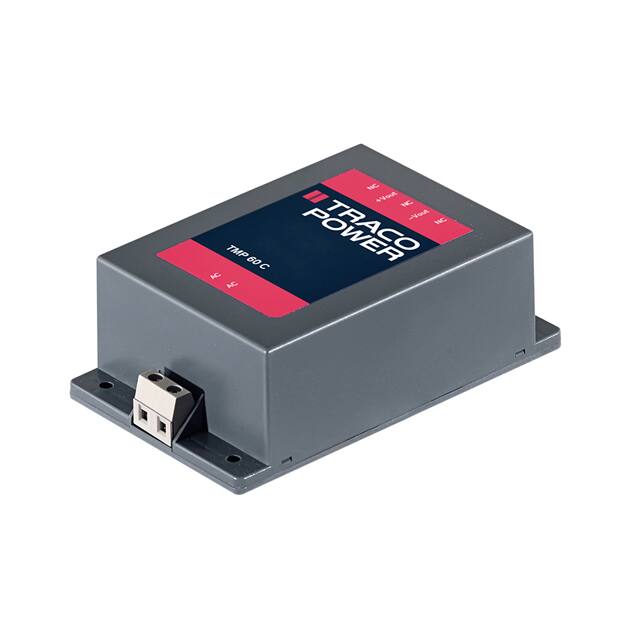

The Traco Power TMP 60124C is a fully encapsulated AC/DC power module designed for industrial and commercial applications. It offers a compact, low-profile plastic casing suitable for space-critical designs.
This power module operates with a universal input voltage range of 85-264 VAC, providing flexibility for global use. It delivers a stable 24VDC output at a maximum current of 2.5A, with a maximum power rating of 60W. The efficiency is rated at 84%.
Designed for easy integration, the TMP 60124C features chassis mounting with screw terminals. It operates within an ambient temperature range of -25°C to +70°C, with derating. The unit is protected against short circuits and overload conditions.
Safety approvals include CB, CE, cULus, and cURus, meeting standards such as IEC/EN 60950-1 and UL508. Protection class II is also a feature. This series is suitable for polluted and dusty environments.
The Traco Power TMP 60124C has an output voltage of 24 VDC.
The maximum output current for the TMP 60124C is 2.5 Amps.
The TMP 60124C has a maximum power output of 60 Watts.
The Traco Power TMP 60124C accepts a universal input voltage range of 85-264 VAC.
The operating temperature range for the TMP 60124C is -25°C to +70°C.
The Traco Power TMP 60124C is designed for chassis mounting.
