| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

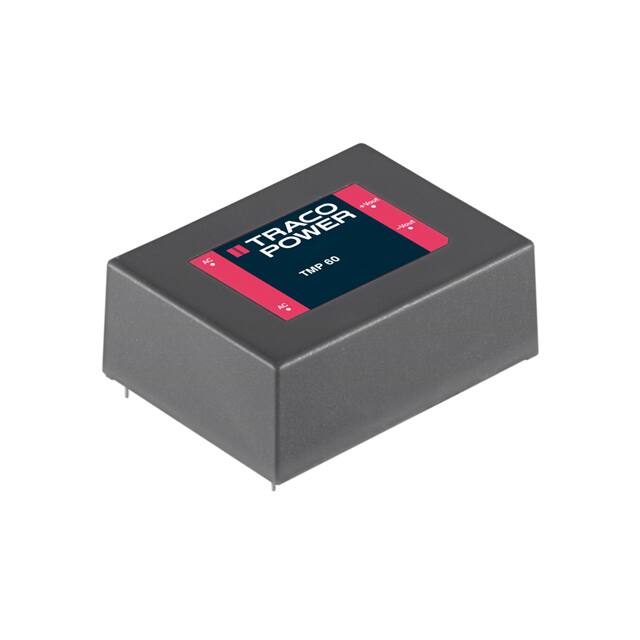

The Traco Power TMP 60112 is a fully encapsulated AC/DC power module designed for industrial and commercial applications. It offers a compact, low-profile plastic casing and is suitable for polluted and dusty environments.
This module provides a 12VDC output with a maximum current of 5A, delivering up to 60W of power. It operates with a universal input voltage range of 85-264 VAC or 120-370 VDC and boasts an efficiency of 82%. Key features include over-temperature protection and protection against short circuits and overloads.
The TMP 60112 is designed for through-hole mounting and comes in a 6-DIP module package with 4 leads. It operates within a temperature range of -25°C to 70°C with derating. The module is certified by CB, CE, cULus, and cURus, meeting international safety standards.
With its robust design and comprehensive safety features, the TMP 60112 is a cost-effective solution for space-critical applications requiring reliable power conversion.
The Traco Power TMP 60112 has an output voltage of 12 VDC.
The TMP 60112 can provide a maximum output current of 5A.
The Traco Power TMP 60112 has a power rating of 60 W.
The TMP 60112 accepts a universal input voltage range of 85 to 264 VAC.
The TMP 60112 operates within a temperature range of -25°C to 70°C, with derating.
The Traco Power TMP 60112 is designed for through-hole mounting.
The TMP 60112 is certified by CB, CE, cULus, and cURus, and meets IEC/EN/UL 62368-1 standards.
