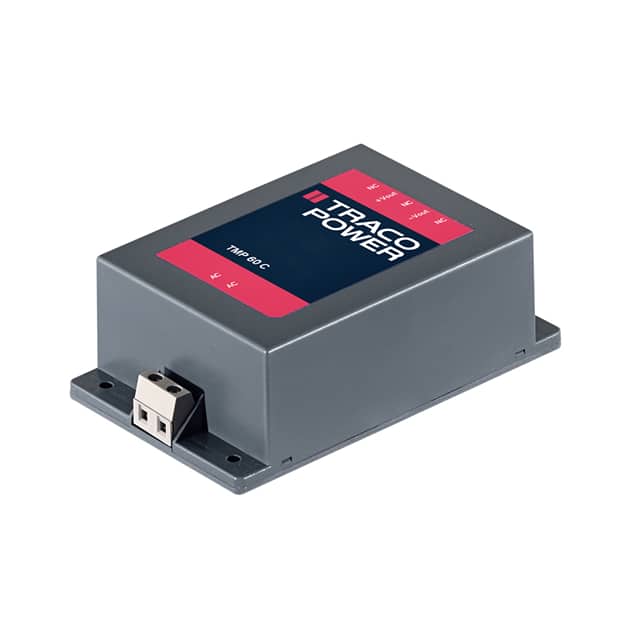

The Traco Power TMP 60105C is a fully encapsulated AC/DC power module designed for industrial and commercial applications. It offers a compact, low-profile plastic casing and is suitable for polluted and dusty environments.
This module provides a 5.1VDC output at 10A, delivering a total of 51W of power. It features a universal input range of 85-264 VAC and operates with an efficiency of 79%. The unit is designed for chassis mounting with screw terminal connections.
Key features include protection class II, over-temperature protection, and protection against short circuit and overload. It meets IEC/EN/UL 62368-1 safety standards and is approved by CB, CE, cULus, and cURus agencies. The operating temperature range is -25°C to 70°C with derating.
With its robust construction and compliance with international safety standards, the TMP 60105C is a cost-effective solution for space-critical applications in commercial and industrial electronic equipment.
85-264 VAC.
5.1 VDC.
-25°C to 70°C with derating.
Enclosed chassis mount package.
79%.
3 kV.
IEC/EN/UL 62368-1.
