| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

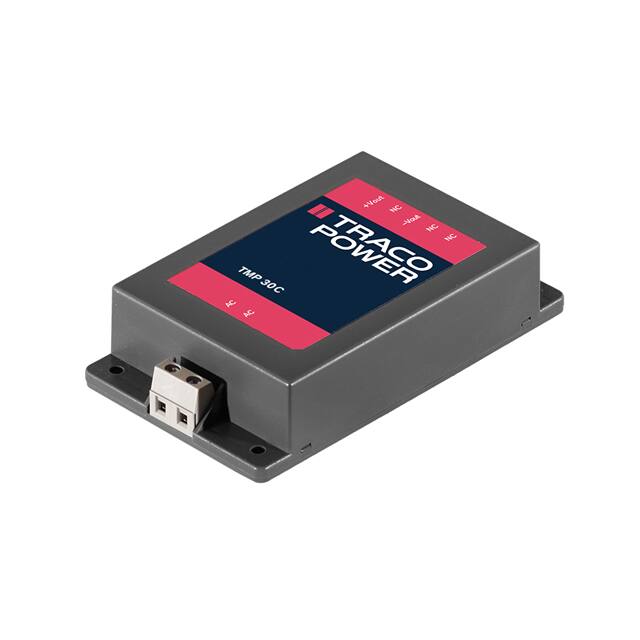

The Traco Power TMP 30512C is an enclosed AC/DC power module with a power rating of 29W and a single -12V output. It operates with a universal input voltage range of 85-264 VAC and a frequency of 47-440 Hz, offering flexibility for global applications. The converter features adjustable output and is designed for chassis mounting, making it suitable for industrial and ITE commercial environments.
With an efficiency of 76%, the TMP 30512C provides a reliable power solution. It operates within a temperature range of -25°C to 70°C with derating. The unit has three outputs and is approved by CB, CE, cULus, and cURus. Its compact dimensions of 112.0mm x 63.8mm x 25.7mm make it ideal for space-critical applications. The power module is fully encapsulated, offering protection against pollution and dust, and features over-temperature protection, short circuit, and overload protection.
This series of AC/DC power modules is designed for cost-effective solutions in commercial and industrial electronic equipment, particularly in polluted and dusty environments. The TMP 30512C is a versatile component for various power supply needs.
The output power is 29W.
The output voltage is -12V.
The output current is 600 mA.
The input voltage range is 85-264 VAC.
The operating temperature range is -25°C to 70°C with derating.
The TMP 30512C is designed for chassis mounting.
