| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

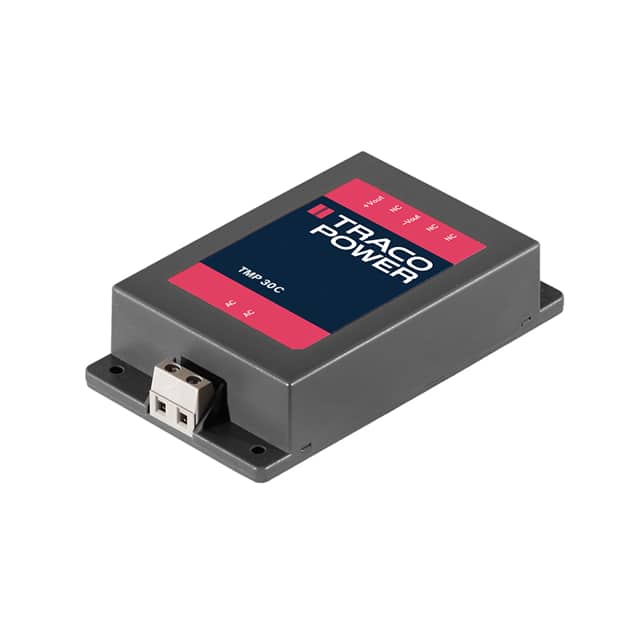

The Traco Power TMP 30252C is a fully encapsulated AC/DC power module designed for industrial and ITE applications. It offers a 30W output power with a 12VDC voltage and 1.25A current, featuring a universal input range of 85-264 VAC.
This module is built with an ultra-compact, low-profile plastic casing and is fully encapsulated to protect against pollution and dust. It supports chassis mounting for easy integration into various systems. The TMP 30252C boasts an efficiency of 76% and operates within a temperature range of -25°C to 70°C with derating.
Key features include adjustable output and universal input capabilities, making it a versatile solution for space-critical applications in commercial and industrial electronic equipment. It meets Protection Class II standards and holds approvals from CB, CE, cULus, and cURus.
With dimensions of 112.0mm x 63.8mm x 25.7mm, this power module is suitable for environments requiring reliable power conversion in demanding conditions.
The output voltage is 12 VDC.
The maximum output current is 1.25 A.
The power rating is 30W.
The input voltage range is 85-264 VAC.
The operating temperature range is -25°C to 70°C (With Derating).
It is designed for chassis mounting.
