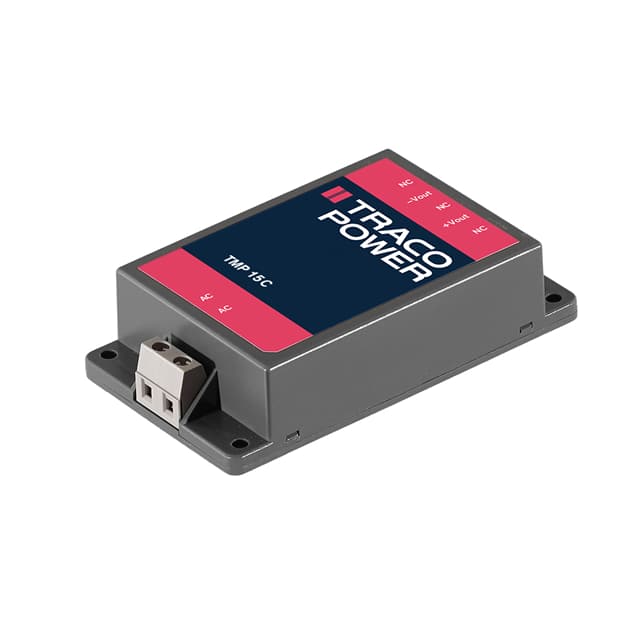

The Traco Power TMP 15515C is an AC/DC Power Module designed for industrial and ITE applications. It offers a 15W output power with a single -15VDC output voltage and 150mA current.
This module features a universal input voltage range of 85-264 VAC, making it suitable for global use. It is designed for chassis mounting and has an efficiency of 74%. The operating temperature range is -25°C to 70°C with derating.
Key features include adjustable output and universal input capabilities. The power module is fully encapsulated, providing protection against pollution and dust, and meets Protection Class II standards. It is approved by CB, CE, cULus, and cURus agencies, adhering to safety standards like IEC/EN/UL 62368-1.
With its compact dimensions (96.0mm x 54.1mm x 23.4mm), this AC/DC converter is a cost-effective solution for space-critical applications in commercial and industrial electronic equipment.
The Traco Power TMP 15515C has a -15VDC output voltage.
The maximum output current for the TMP 15515C is 150 mA.
The Traco Power TMP 15515C has a power rating of 15W.
The TMP 15515C accepts a universal input voltage range of 85-264 VAC.
The Traco Power TMP 15515C operates between -25°C and 70°C, with derating.
The Traco Power TMP 15515C is designed for chassis mounting.
