| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

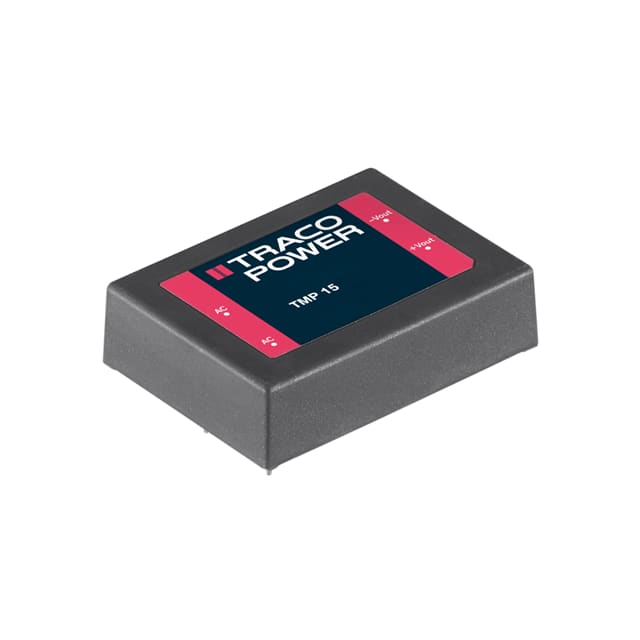

The Traco Power TMP 15212 is an enclosed AC/DC power supply module designed for ITE (Commercial) applications. It features a universal input voltage range of 85-264 VAC, making it suitable for global use. This model provides dual outputs with voltages of +12VDC and -12VDC, each capable of delivering up to 0.65A, for a total maximum power of 15 Watts.
With an efficiency of 79%, the TMP 15212 operates within a temperature range of -25°C to 70°C with derating. Its mechanical dimensions are 74.0mm in length, 54.0mm in width, and 19.5mm in height. The unit is designed for through-hole mounting and comes in a 7-DIP Module, 5 Leads package.
Safety approvals include CB, CE, cULus, and cURus, and it meets Protection Class II standards. The device is RoHS3 compliant and has an MSL rating of 1 Unlimited.
85-264 VAC at 47-440 Hz.
12 VDC and -12 VDC.
0.65 A per output.
15 W.
-25°C to 70°C with derating.
7-DIP module with 5 leads, through-hole mounting.
IEC/EN/UL 62368-1, UL 60950-1, IEC/EN 60950-1, CB, CE, cULus, and cURus.
