| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

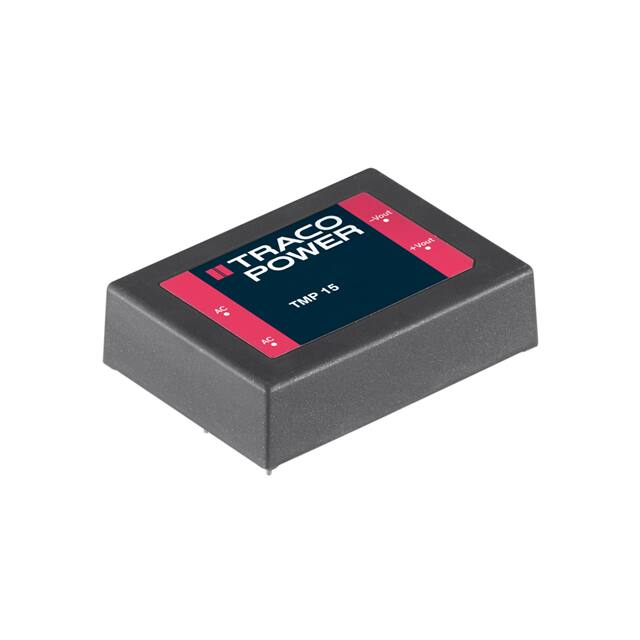

The Traco Power TMP 15148 is a 15W AC/DC power module designed for industrial and commercial applications. It offers a single 48VDC output with a current rating of 310mA, achieving an efficiency of 79% at full load.
This power module features a universal input voltage range of 85-264 VAC or 120-370 VDC, making it suitable for global markets. It operates within a temperature range of -25°C to 70°C with derating.
The TMP 15148 is housed in an ultra-compact, low-profile plastic casing and is fully encapsulated, providing protection against pollution and dust. It is designed for through-hole mounting and comes in a 7-DIP module package with 4 leads.
Key features include over-temperature protection, short circuit and overload protection, and compliance with IEC/EN/UL 62368-1 safety standards.
The TMP 15148 has a single output voltage of 48 VDC.
The maximum output current for the TMP 15148 is 310mA.
The TMP 15148 accepts a universal input voltage range of 85 ~ 264 VAC and 120 ~ 370 VDC.
The operating temperature range for the TMP 15148 is -25°C to 70°C, with derating.
The TMP 15148 is a 7-DIP Module with 4 leads and is designed for through-hole mounting.
The TMP 15148 complies with IEC/EN/UL 62368-1, UL 508, UL 60950-1, and UL 62368-1 standards.
