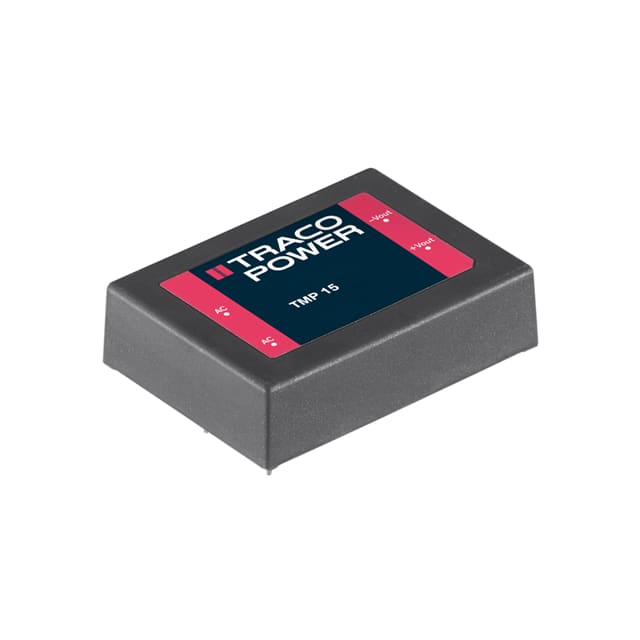

The Traco Power TMP 15115 is an AC/DC power module designed for industrial and commercial electronic equipment. This fully encapsulated unit offers a compact, low-profile plastic casing and is suitable for polluted and dusty environments.
Key electrical specifications include a 15W output power, a 15VDC output voltage, and a 1A output current. It operates with a universal input voltage range of 85-264 VAC (or 120-370 VDC) and achieves an efficiency of 79%. The module is protected against over-temperature, short circuit, and overload conditions.
Designed for through-hole mounting, the TMP 15115 comes in a 7-DIP module package. It operates within a temperature range of -25°C to 70°C with derating. The power module meets IEC/EN/UL 62368-1 safety standards and carries a 3-year product warranty.
This series offers easy chassis mounting with screw terminal blocks or direct PCB mounting with solder pins, making it a cost-effective solution for space-critical applications.
The Traco Power TMP 15115 has an output voltage of 15 VDC.
The TMP 15115 provides an output current of 1A.
The TMP 15115 accepts a universal input voltage range of 85 to 264 VAC.
The efficiency of the Traco Power TMP 15115 is typically 79%.
The operating temperature range for the TMP 15115 is -25°C to 70°C, with derating.
The Traco Power TMP 15115 is designed for through-hole mounting.
The TMP 15115 has safety approvals including CB, CE, cULus, and cURus, and meets IEC/EN/UL 62368-1 standards.
