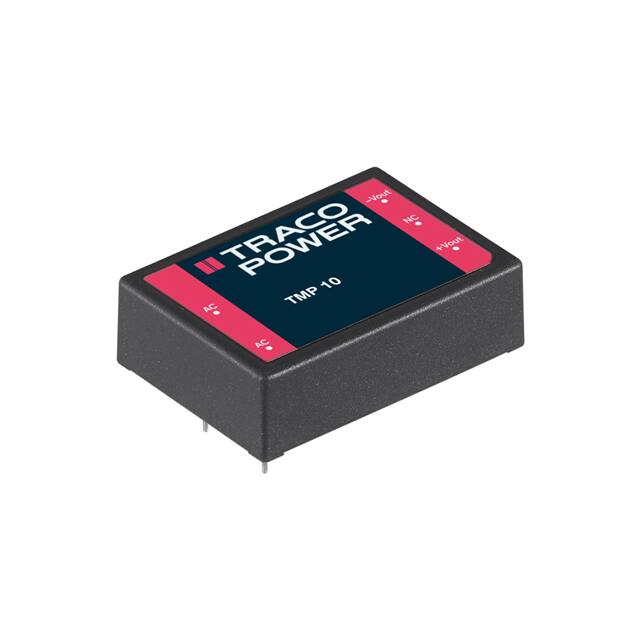

The Traco Power TMP 10215 is an AC/DC power module designed for industrial and commercial electronic equipment. This enclosed converter offers a 9W output power with dual outputs of +/-15V DC, each capable of delivering 300mA. It operates with a universal input voltage range of 85-264 VAC and features an efficiency of 77%.
The TMP 10215 is designed for through-hole mounting and comes in a 5-DIP module package. Its compact dimensions (64.0mm x 45.0mm x 19.2mm) make it suitable for space-critical applications. The operating temperature range is -25°C to 50°C, and it includes features such as over-temperature protection and protection against short circuits and overload.
This power module complies with Protection Class II and holds approvals from CB, CE, cULus, and cURus, including IEC/EN/UL 62368-1 and UL 508 standards. It is suitable for ITE (Commercial) applications and environments that may be polluted or dusty due to its fully encapsulated design.
The TMP 10215 is backed by a 3-year product warranty, offering a reliable and cost-effective solution for various power conversion needs.
The Traco Power TMP 10215 provides dual +/-15V DC outputs.
Each output channel of the TMP 10215 can deliver up to 300mA.
The Traco Power TMP 10215 has a maximum output power of 9W.
The efficiency of the TMP 10215 is 77%.
The TMP 10215 accepts a universal input voltage range of 85-264 VAC.
The TMP 10215 operates within a temperature range of -25°C to 50°C.
The TMP 10215 is designed for through-hole mounting.
