| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Input Frequency | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| Type | |
| Voltage |

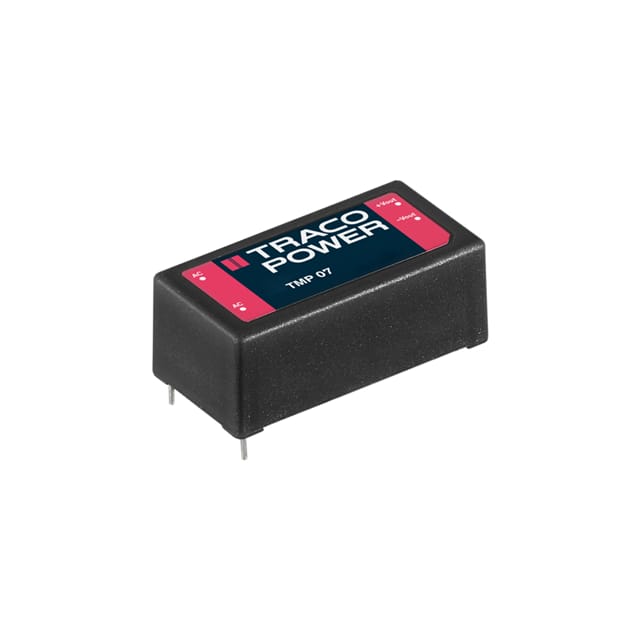

The Traco Power TMP 07103 is a compact, enclosed AC/DC power module designed for industrial and commercial electronic equipment. It operates with a universal input voltage range of 85-264 VAC or 120-370 VDC and provides a single output of 3.3V at 1.4A, totaling 4.6W of power.
Key electrical specifications include an efficiency of 70% and an operating temperature range of -25°C to 70°C with derating. The module is housed in a 4-DIP module package and utilizes through-hole mounting for secure integration into PCB designs.
This power module is suitable for ITE (Commercial) applications and meets various international safety standards, including IEC/EN/UL 62368-1 and CB report. It also features over-temperature protection and protection against short circuit and overload, backed by a 3-year product warranty.
The Traco Power TMP 07103 provides a 3.3 VDC output.
The TMP 07103 has a maximum output power of 4.6 W.
The TMP 07103 accepts a universal input voltage range of 85 to 264 VAC or 120 to 370 VDC.
The TMP 07103 operates within a temperature range of -25°C to 70°C, with derating.
The TMP 07103 is designed for through-hole mounting.
