Mfr Part #:

TMMS-120-01-L-Q-RA-FS

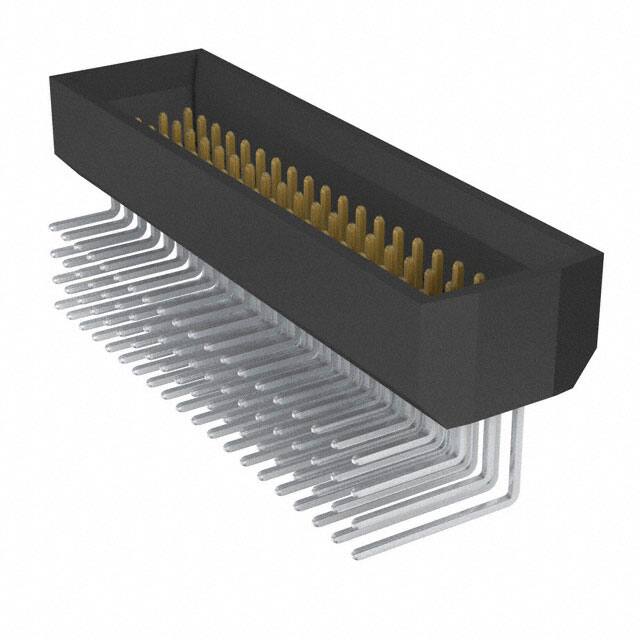

80 position, 2.00mm pitch, 4 row right angle through-hole shrouded header with male pins. Features phosphor bronze contacts with tin finish and black LCP insulation.

✓ Total Stock: 104 pcs

$ Price Range: $6.97 - $11.45

TMMS-120-01-L-Q-RA-FS Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Hybrid Electronics ✓ Non-Authorised Inventory information	104 pcs On Request	104 pcs	On Request	1	On Request	On Request	1434	On Request	On Request

TMMS-120-01-L-Q-RA-FS Description

Short technical summary and product information.

The TMMS-120-01-L-Q-RA-FS is a 80-position, 2.00mm pitch, 4-row right angle through-hole shrouded header from Samtec's TMMS series. It features male pin contacts made of phosphor bronze with a tin finish (0.25µm thickness). The connector is shrouded with a 4-wall design and uses a push-pull fastening mechanism.

The insulation is made of black Liquid Crystal Polymer (LCP) with a flammability rating of UL94 V-0. The operating temperature range is -55°C to 125°C. The contact length is 3.30mm and the insulation height is 12.07mm. The connector is lead-free solderable.

This header is designed for board-to-board applications and mates with Samtec SQT, SQW, and ESQT series receptacles. The right-angle orientation allows for low-profile connections in space-constrained designs. The through-hole termination provides robust mechanical attachment.

TMMS-120-01-L-Q-RA-FS Quick Information

Product Type: Shrouded Header

Series: TMMS

Canonical Name: 80 Position 2.00mm Pitch 4 Row Right Angle Through Hole Shrouded Header, Male Pins

Subcategory: Shrouded Header

TMMS-120-01-L-Q-RA-FS Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

TMMS-120-01-L-Q-RA-FS Estimated Pricing

Qty	Low	High
1+	$11.45	$11.45
108+	$9.06	$9.06
504+	$8.47	$8.47
1,008+	$6.97	$6.97

Estimated market price range - modelled values for guidance only, not live distributor offers.

TMMS-120-01-L-Q-RA-FS Features

80 positions in 4 rows at 2.00mm pitch.
Right-angle through-hole mounting style.
Shrouded 4-wall design for mating protection.
Tin-plated phosphor bronze contacts.
Operating temperature range -55°C to 125°C.

TMMS-120-01-L-Q-RA-FS Applications

Board-to-board interconnects in dense electronic assemblies.
Right-angle connections for space-constrained PCB layouts.
High-density signal routing in industrial equipment.

TMMS-120-01-L-Q-RA-FS FAQs

7 frequently asked questions generated from this part’s specifications.

What is the number of positions?

80 positions.

What is the pitch?

2.00mm.

What is the mounting type?

Through hole, right angle.

What is the operating temperature range?

-55°C to 125°C.

What is the contact finish?

Tin with 0.25µm thickness.

What is the insulation material?

Black Liquid Crystal Polymer (LCP) with UL94 V-0 rating.

What series does this connector belong to?

Samtec TMMS series.

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header
Contact Finish	Tin
Contact Finish Thickness	0.25µm
Contact Length	3.30mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	12.07mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	80
Number of Positions Loaded	All
Number of Rows	4
Operating Temperature	-55°C ~ 125°C
Pitch	2.00mm
Row Spacing	2.00mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board
Tape & Reel	No
Termination	Solder
Termination Style	Solder
