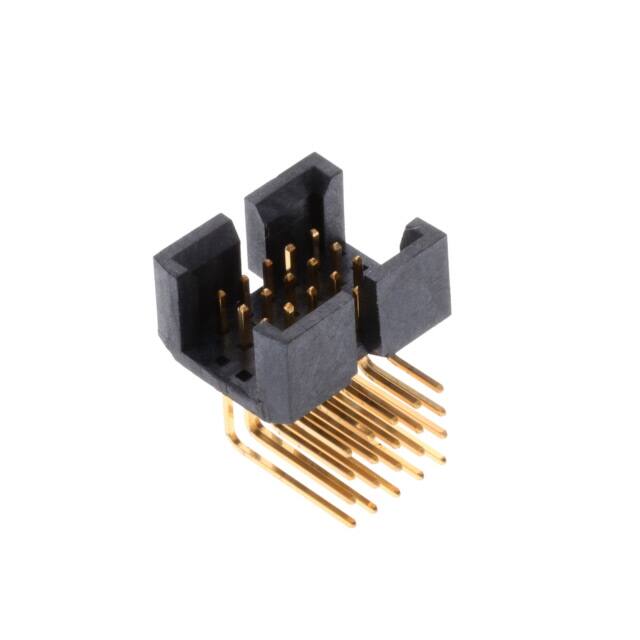

TMMS-105-01-G-Q-RA 20 position 2.00mm pitch 4 row right angle through-hole shrouded header with gold contact finish from Samtec.
Mfr Part #:

TMMS-105-01-G-Q-RA

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
20 position 2.00mm pitch 4 row right angle through-hole shrouded header with gold contact finish from Samtec.
✓ Total Stock: 200 pcs
$ Price Range: $5.04 - $7.27

TMMS-105-01-G-Q-RA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
200 pcs
On Request
200 pcs On Request 1 On Request On Request 1999 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TMMS-105-01-G-Q-RA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

TMMS-105-01-G-Q-RA Description

Short technical summary and product information.

The Samtec TMMS-105-01-G-Q-RA is a 20 position 2.00mm pitch 4 row right angle through-hole shrouded header. It features gold plated phosphor bronze square pins with 10.0 microinch gold contact finish. The insulator is black liquid crystal polymer (LCP) rated UL94 V-0. Operating temperature range is -55°C to 125°C. Push-pull fastening type with 4-wall shrouding for robust mating. Designed for board-to-board applications.

TMMS-105-01-G-Q-RA Quick Information

Product Type: Header, Male Pins
Series: TMMS
Canonical Name: Samtec TMMS-105-01-G-Q-RA 20 Position 2.00mm Pitch 4 Row Right Angle Shrouded Header
Subcategory: Shrouded Header

TMMS-105-01-G-Q-RA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Level 1 (Unlimited)
REACH Status: REACH Unaffected

TMMS-105-01-G-Q-RA Estimated Pricing

Qty Low High
1+ $7.27 $7.27
114+ $5.98 $5.98
532+ $5.69 $5.69
1,026+ $5.04 $5.04

Estimated market price range - modelled values for guidance only, not live distributor offers.

TMMS-105-01-G-Q-RA Features

  • 20 position 2.00mm pitch right angle header.
  • 4 row configuration increases board density.
  • Gold plated phosphor bronze contacts.
  • Shrouded 4-wall design for mating reliability.
  • Wide operating temperature range -55°C to 125°C.

TMMS-105-01-G-Q-RA Applications

  • Board-to-board stacking and interconnect.
  • High density right-angle connections.
  • Industrial and consumer electronics PCBs.

TMMS-105-01-G-Q-RA FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of this header?

2.00mm

How many positions does this connector have?

20 positions

What is the mounting type?

Through-hole, right angle

What contact finish is used?

Gold

What is the operating temperature range?

-55°C to 125°C

What is the insulation material?

Liquid Crystal Polymer (LCP)

Is the connector shrouded?

Yes, 4-wall shrouded
