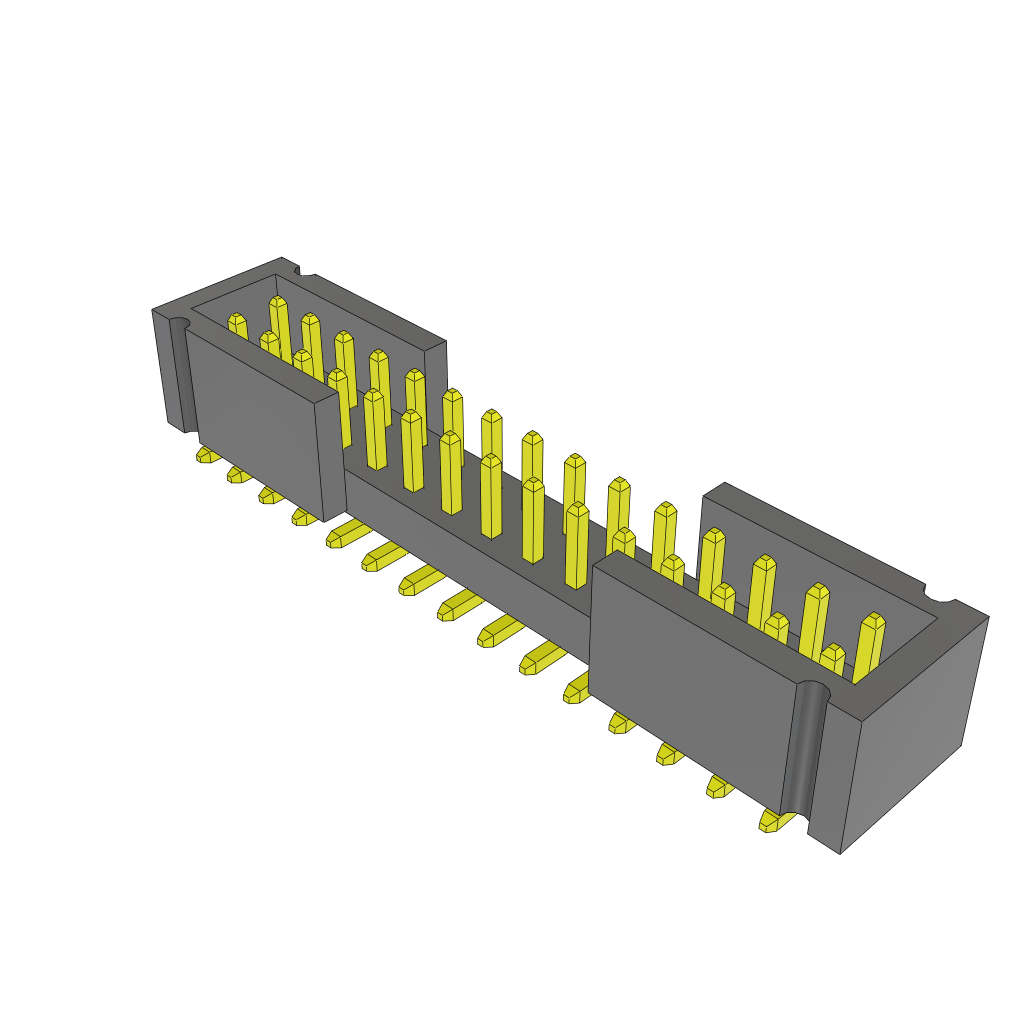

TMMH-115-01-G-DV-ES The Samtec Inc. TMMH-115-01-G-DV-ES is a low profile header strip with a 2.00 mm pitch. It features 30 positions and surface mount termination.
Mfr Part #:

TMMH-115-01-G-DV-ES

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
The Samtec Inc. TMMH-115-01-G-DV-ES is a low profile header strip with a 2.00 mm pitch. It features 30 positions and surface mount termination.
✓ Total Stock: 474 pcs
$ Price Range: $0.77

TMMH-115-01-G-DV-ES Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
474 pcs
On Request
474 pcs On Request 1 On Request On Request 18+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TMMH-115-01-G-DV-ES Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating
Fastening Type
Features
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Orientation
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Termination Style
View Similar Products (0)

TMMH-115-01-G-DV-ES Description

Short technical summary and product information.

The Samtec Inc. TMMH-115-01-G-DV-ES is a low profile header strip designed for board-to-board or cable applications. It features a 2.00 mm pitch and a total of 30 positions, with all positions loaded. The termination type is solder, and it is designed for surface mount mounting.



Key specifications include a contact material of Phosphor Bronze with a gold finish, and an insulation material of Liquid Crystal Polymer (LCP) in black. The insulation height is 2.00mm (0.079"), and the operating temperature ranges from -55°C to 125°C. This header strip also includes end shrouds for added protection and features a push-pull fastening type.



The TMMH series offers flexibility with its FleXYZ™ feature, providing design adaptability in multiple axes. This component is suitable for applications requiring reliable connections with a current rating of up to 3.2 Amps per pin.

TMMH-115-01-G-DV-ES Quick Information

Product Type: Header, Male Pin
Series: TMMH
Canonical Name: Samtec Inc. TMMH Series Low Profile Header Strip, 2.00 mm Pitch
Subcategory: Low Profile Header Strip

TMMH-115-01-G-DV-ES Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TMMH-115-01-G-DV-ES Estimated Pricing

Qty Low High
1+ $0.77 $0.77

Estimated market price range - modelled values for guidance only, not live distributor offers.

TMMH-115-01-G-DV-ES Features

  • 2.00 mm pitch header strip.
  • 30 positions, all loaded.
  • Surface mount termination.
  • Phosphor Bronze contacts with gold plating.
  • Liquid Crystal Polymer insulation.

TMMH-115-01-G-DV-ES Applications

  • Board-to-board connections.
  • Cable assembly applications.
  • High-density interconnects.
  • Flexible design applications.

TMMH-115-01-G-DV-ES FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the TMMH-115-01-G-DV-ES have?

30 positions, all loaded in 2 rows.

What is the pitch of this header?

2.00mm (0.079")

What is the current rating per pin?

3.2A per pin.

What is the mounting type?

Surface mount with solder termination.

What is the operating temperature range?

-55°C to 125°C

What is the contact finish?

Gold, 20.0µin (0.51µm) thickness.

Is this header shrouded?

No, it is unshrouded.
