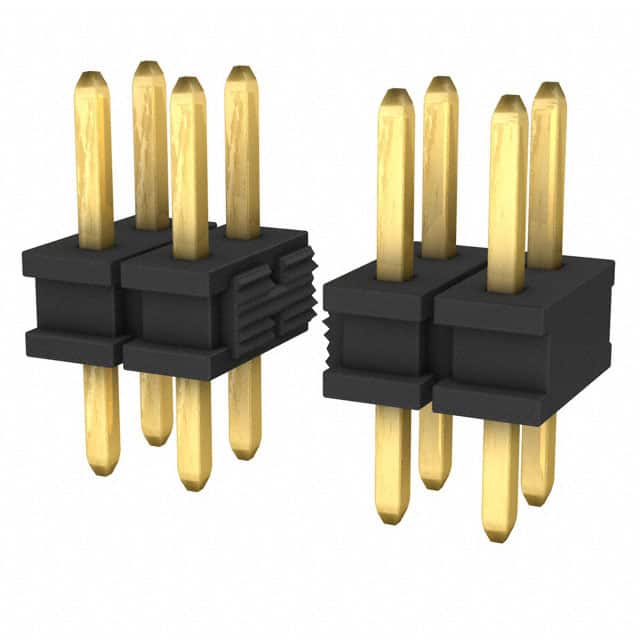

TMMH-110-01-G-D Samtec TMMH-110-01-G-D is a 2mm pitch low profile unshrouded header with 20 male pins in 2 rows. It features through hole solder termination and gold contact finish.
Mfr Part #:

TMMH-110-01-G-D

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec TMMH-110-01-G-D is a 2mm pitch low profile unshrouded header with 20 male pins in 2 rows. It features through hole solder termination and gold contact finish.
✓ Total Stock: 1,058 pcs
$ Price Range: $1.70 - $2.86

TMMH-110-01-G-D Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
1,058 pcs
On Request
1058 pcs On Request 1 On Request On Request 0101 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TMMH-110-01-G-D Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Overall Contact Length
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Termination Style
View Similar Products (0)

TMMH-110-01-G-D Description

Short technical summary and product information.

The Samtec TMMH-110-01-G-D is a 2mm low profile unshrouded header designed for board-to-board or cable connections. It has 20 positions arranged in 2 rows with a pitch of 2.00mm and row spacing of 2.00mm.



The connector features phosphor bronze square male pins with a gold contact finish of 20.0µin (0.51µm). The overall contact length is 7.67mm, with a contact length of 3.20mm. The insulation is black liquid crystal polymer (LCP) with a flammability rating of UL94 V-0.



The header is through hole mounted with solder termination. It operates over a temperature range of -55°C to 125°C. The push-pull fastening type allows easy mating and unmating. This unshrouded design provides flexibility for various interconnection applications.

TMMH-110-01-G-D Quick Information

Product Type: Header, Male Pins
Series: TMMH
Canonical Name: Samtec TMMH-110-01-G-D 2mm Low Profile Unshrouded Header, Male Pins, Through Hole, 20 Positions
Subcategory: Unshrouded Header

TMMH-110-01-G-D Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TMMH-110-01-G-D Estimated Pricing

Qty Low High
1+ $2.86 $2.86
50+ $2.48 $2.48
100+ $2.37 $2.37
500+ $2.25 $2.25
1,000+ $2.04 $2.04
2,000+ $1.90 $1.90
5,000+ $1.70 $1.70

Estimated market price range - modelled values for guidance only, not live distributor offers.

TMMH-110-01-G-D Features

  • 2mm pitch low profile unshrouded header.
  • 20 positions in 2 rows with gold contacts.
  • Through hole solder termination for secure mounting.
  • Operating temperature range -55°C to 125°C.
  • UL94 V-0 rated LCP insulation.

TMMH-110-01-G-D Applications

  • Board-to-board interconnections in compact designs.
  • Cable-to-board connections requiring low profile.
  • General purpose signal routing in electronic assemblies.

TMMH-110-01-G-D FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the TMMH-110-01-G-D have?

20 positions.

What is the pitch of this header?

2.00mm (0.079").

What is the mounting type?

Through hole with solder termination.

What is the operating temperature range?

-55°C to 125°C.

What is the contact finish?

Gold with 20.0µin (0.51µm) thickness.

Is this header shrouded or unshrouded?

Unshrouded.

What is the insulation material and flammability rating?

Liquid Crystal Polymer (LCP) with UL94 V-0 rating.
