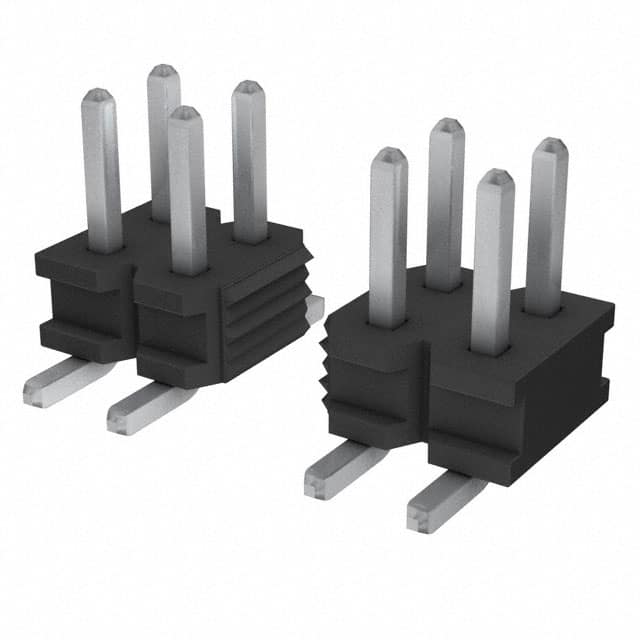

The TMMH-105-01-T-DV is a 10-position, 2-row surface mount male pin header from Samtec's TMMH series. It features a 2.00mm pitch and row spacing, making it suitable for compact board-to-board and cable interconnects. The contacts are made of phosphor bronze with a matte tin plating, and the insulator is black Liquid Crystal Polymer (LCP) rated UL94 V-0.
Electrical performance varies with mating connector: current rating is 4.2A per pin with CLT, 4.5A with ESQT, and 5.1A with SQT (2 pins powered). Voltage rating ranges from 250 VAC/354 VDC (mated with SQT) to 405 VAC/573 VDC (mated with CLT). Operating temperature range is -55°C to +105°C with tin plating.
The header is unshrouded with push-pull fastening and surface mount solder termination. It is lead-free solderable with maximum SMT lead coplanarity of 0.10mm. Typical applications include prototyping, production runs, and space-constrained electronic assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.71 | $0.71 |
| 57+ | $0.59 | $0.59 |
| 114+ | $0.49 | $0.49 |
| 513+ | $0.45 | $0.45 |
| 2,052+ | $0.42 | $0.42 |
| 5,016+ | $0.36 | $0.36 |
| 10,032+ | $0.28 | $0.28 |
| 25,023+ | $0.27 | $0.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 10 positions arranged in 2 rows.
The pitch is 2.00mm (0.079 inches).
Current rating per pin (2 pins powered) is 4.2A when mated with CLT, 4.5A with ESQT, and 5.1A with SQT.
Voltage rating varies with mating: 405 VAC/573 VDC with CLT, 281 VAC/397 VDC with SQW, and 250 VAC/354 VDC with SQT.
It is surface mount (SMD) with solder termination.
Operating temperature range is -55°C to +105°C with tin plating.
Yes, the TMMH-105-01-T-DV is lead-free solderable.
