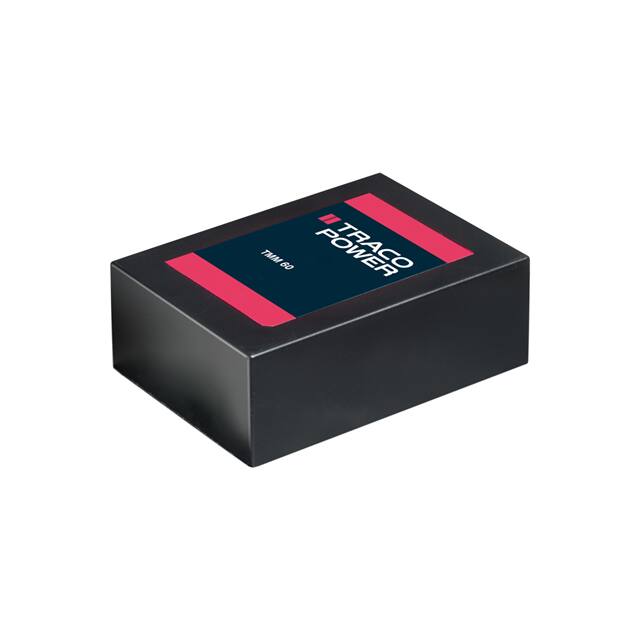

The Traco Power TMM 60148 is a 60 Watt AC/DC power supply module from the TMM 60 Series. It features a fully encapsulated, low-profile plastic casing suitable for PCB mounting. This converter provides a single 48VDC output with a maximum current of 1.25A and an efficiency of 88% at full load.
Designed for versatility, it accepts a wide input voltage range of 85-264 VAC and 120-370 VDC, with an operational frequency of 47-440 Hz. The module meets stringent safety standards, including 2 x MOPP for medical applications (AAMI/ANSI ES 60601-1, IEC/EN 60601-1 3rd edition) and IT/industrial safety (IEC/EN/UL 62368-1). It also includes protection against over-temperature, overload, and short circuits.
With an operating temperature range of -40°C to 75°C (with derating), the TMM 60148 is suitable for demanding environments. Its compact dimensions (88.9mm x 67.5mm x 34.2mm) and Through Hole mounting type make it adaptable for various industrial, ITE (Commercial), and medical equipment designs. The unit boasts low no-load power consumption, ready to meet ErP directive requirements.
85-264 VAC (full range) or 120-370 VDC (operational).
48 VDC at up to 1.25 A (60 W).
Up to 88%.
Medical safety 2xMOPP per AAMI/ANSI ES 60601-1 and IEC/EN 60601-1, and IT/industrial safety per IEC/EN/UL 62368-1. Class II prepared.
Over-temperature, overload, and short circuit protection.
-40°C to +75°C with derating.
6-DIP through-hole module, 4 leads.
