| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Protection | |
| Type | |
| Voltage | |
| Width |

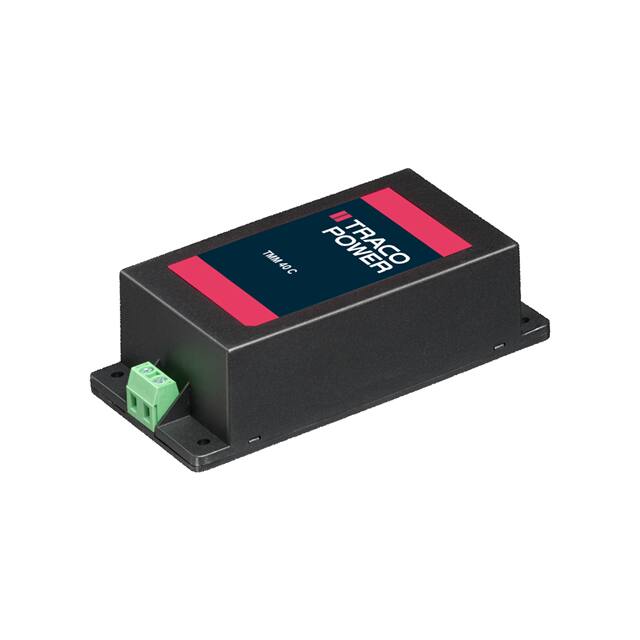

The Traco Power TMM 40215C is a fully encapsulated 40 Watt AC/DC power supply module from the TMM 40 Series. It offers a dual output configuration with +/-15 VDC at 1.33 A each, providing a total of 40W.
This converter operates with a universal input voltage range of 85-264 VAC and features high efficiency up to 85%. It is designed for demanding applications, meeting medical safety standards (2 x MOPP according to IEC/EN 60601-1 3rd edition) and IT/industrial safety standards (IEC/EN/UL 62368-1).
The module has a compact, enclosed design suitable for chassis mounting. It operates within a wide temperature range of -40°C to 80°C with derating and includes protection against over-temperature, overload, and short circuits. The TMM 40215C is prepared for Safety Class II and has a 3-year product warranty.
The Traco Power TMM 40215C provides dual outputs of +15 VDC and -15 VDC.
Each output on the TMM 40215C can deliver a maximum current of 1.33 A.
The TMM 40215C converter has a total power output of 40W.
The TMM 40215C has an efficiency rating of 85%.
The TMM 40215C operates within a temperature range of -40°C to 80°C with derating.
The TMM 40215C meets 2 x MOPP Medical safety according to IEC/EN 60601-1 3rd edition and IT and industrial safety according to IEC/EN/UL 62368-1.
