| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Protection | |
| SVHC Present | |
| Type | |
| Voltage |

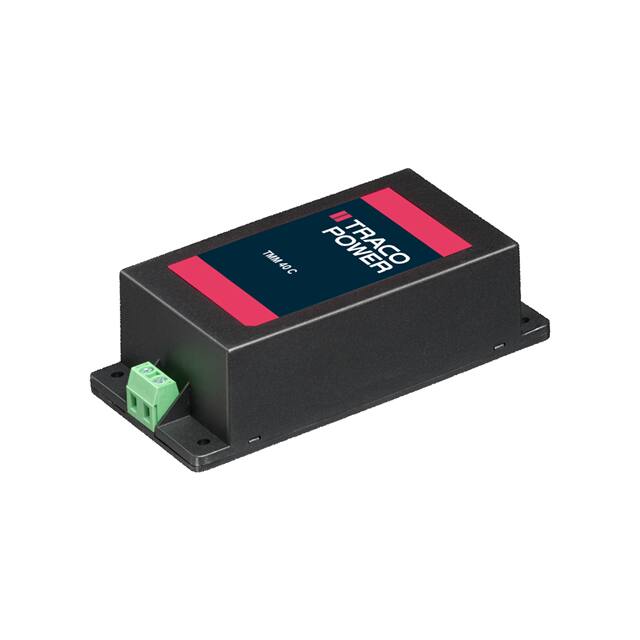

The Traco Power TMM 40 Series, specifically the TMM 40212C model, is a fully encapsulated 40 Watt AC/DC power supply module. It provides dual outputs of +12 VDC and -12 VDC, each capable of delivering 1.66 A, with an overall efficiency of 84%.
This power supply module is designed for versatility, featuring a universal input range of 85-264 VAC and 47-440 Hz. It meets stringent safety standards, including 2 x MOPP medical safety according to AAMI/ANSI ES 60601-1 and IEC/EN 60601-1 3rd edition, as well as IT and industrial safety according to IEC/EN/UL 62368-1. It also includes protection against over-temperature, overload, and short circuits.
The TMM 40212C is built with a low-profile plastic casing suitable for PCB mounting. Its operating temperature range is -40°C to +80°C with derating. The module's dimensions are 112.0mm x 63.8mm x 34.0mm. It is suitable for demanding applications in industrial, ITE (commercial), and medical environments.
The TMM 40212C provides dual outputs of +12 VDC and -12 VDC.
Each output on the TMM 40212C can deliver a maximum current of 1.66 A.
The TMM 40212C has a total power output of 40W.
The efficiency of the TMM 40212C is 84%.
The TMM 40212C operates in a temperature range of -40°C to 80°C with derating.
The TMM 40212C meets 2 x MOPP medical safety standards and IT/industrial safety standards.
The TMM 40212C is RoHS3 Compliant.
