| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

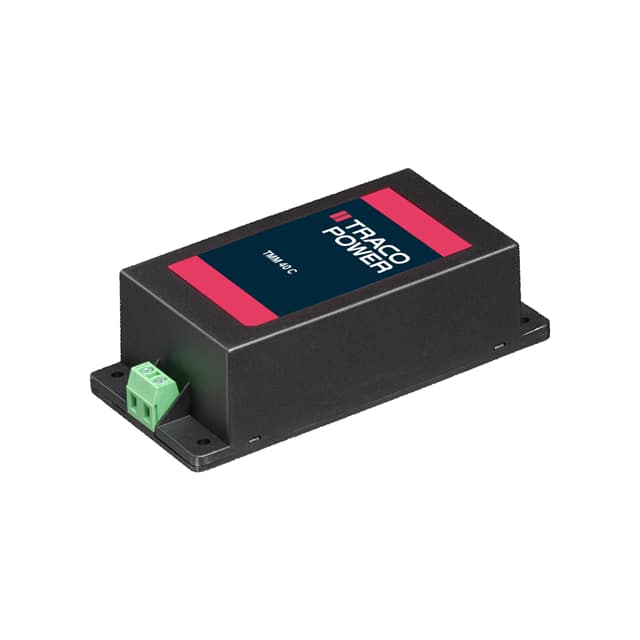

The Traco Power TMM 40105C is a 40 Watt AC/DC power supply module from the TMM 40 Series. It is fully encapsulated in a low-profile plastic casing, suitable for PCB mounting. This module provides a single 5VDC output with a maximum current of 8A, achieving 81% efficiency.
Designed for demanding applications, the TMM 40105C meets stringent safety standards, including 2 x MOPP medical safety (AAMI/ANSI ES 60601-1 and IEC/EN 60601-1 3rd edition) and IT/industrial safety (IEC/EN/UL 62368-1). It also meets UL 508 standards. The power supply operates across a wide AC input voltage range of 85-264 VAC and has a no-load power consumption ready to meet ErP directive requirements (<0.3 W).
With a wide operating temperature range of -40°C to +60°C without derating, this module is suitable for industrial, ITE (Commercial), and medical applications. It includes protection against over-temperature, overload, and short circuit. The dimensions are 112.0mm x 63.8mm x 34.0mm.
The TMM 40105C provides a 5 VDC output voltage with a maximum current of 8 A.
The efficiency of the TMM 40105C is 81%.
The TMM 40105C can operate from -40°C to +60°C without load derating.
The TMM 40105C meets 2 x MOPP medical safety according to AAMI/ANSI ES 60601-1 and IEC/EN 60601-1 3rd edition, and IT and industrial safety according to IEC/EN/UL 62368-1.
The dimensions of the TMM 40105C are 112.0mm in length, 63.8mm in width, and 34.0mm in height.
