| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Lead Style | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Protection | |
| Type | |
| Voltage | |
| Width |

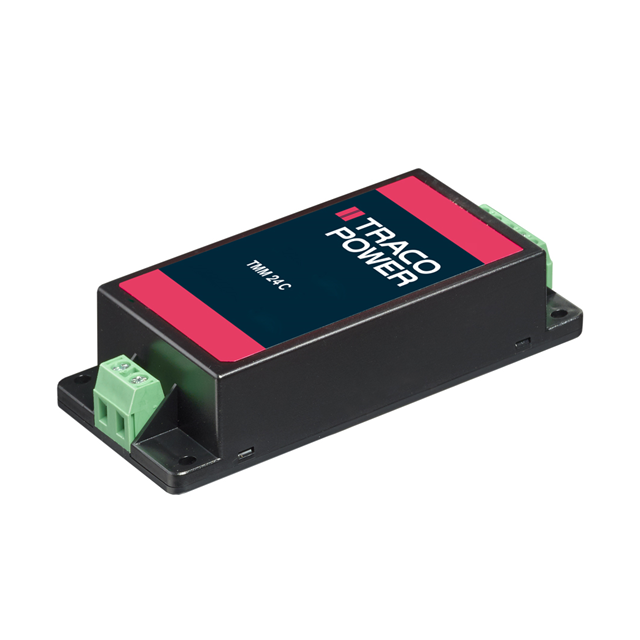

The Traco Power TMM 24212 is a 24 Watt AC/DC power supply module from the TMM 24 Series. It offers a dual output configuration with +12 VDC and -12 VDC, each capable of supplying up to 1A.
This enclosed converter operates with a universal input voltage range of 85-264 VAC and features a high efficiency of 84%. It is designed for demanding applications in industrial, ITE (Commercial), and medical environments, meeting safety standards such as IEC/EN/UL 62368-1 and medical safety standards for 2 x MOPP.
The module has a compact footprint with dimensions of 74.0mm x 54.0mm x 19.5mm and is designed for through-hole mounting. It operates within a temperature range of -40°C to 80°C with derating and includes protection against over-temperature, overload, and short circuits.
The operational input voltage range is 85-264 VAC (47-440 Hz) and 120-370 VDC. The rated range is 100-240 VAC at 50/60 Hz.
The TMM24212 provides dual outputs: +12 VDC at 1A and -12 VDC at 1A, total power 24W.
The operating temperature range is -40°C to 80°C with derating.
The TMM24212 is an enclosed 6-DIP module with 5 leads, designed for through-hole mounting.
It has 2xMOPP medical safety (AAMI/ANSI ES 60601-1, IEC/EN 60601-1), IT/industrial safety IEC/EN/UL 62368-1, and is Class II prepared.
The isolation voltage is 4 kV.
Protection against over-temperature, overload, and short circuit.
