| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Protection Features | |
| Type | |
| Voltage | |
| Width |

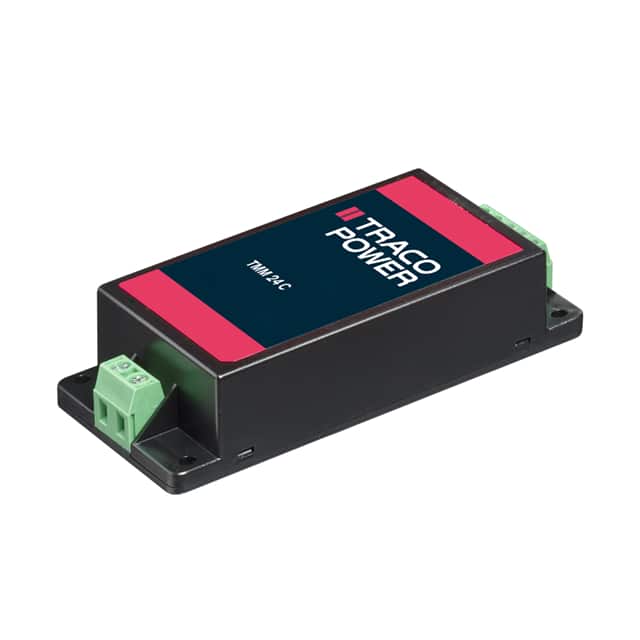

The Traco Power TMM 24124C is a 24 Watt AC/DC power supply module from the TMM 24C Series. It is fully encapsulated in a low-profile plastic casing and designed for chassis mounting.
This converter offers a 24VDC output with a maximum current of 1A, achieving an efficiency of 85%. It features universal AC input (85-264 VAC) and can also accept DC input (120-370 VDC). The module is built to meet stringent safety standards, including 2 x MOPP medical safety according to AAMI/ANSI ES 60601-1 and IEC/EN 60601-1 3rd edition, as well as IT and industrial safety according to IEC/EN/UL 62368-1 and UL 508.
Key features include protection against over-temperature, overload, and short circuit. The operating temperature range is -40°C to +80°C with derating. Its EMI/EMC characteristics and safety approvals make it suitable for medical devices, transportation systems, and demanding industrial and commercial applications.
The dimensions are 96.0mm x 54.1mm x 23.4mm. It comes with a 3-year product warranty.
The TMM 24124C has an output voltage of 24 VDC.
The maximum output current for the TMM 24124C is 1 A.
The TMM 24124C has a power rating of 24W.
The efficiency of the TMM 24124C is 85%.
The operating temperature range is -40°C to 80°C with derating.
It meets 2 x MOPP Medical safety according to AAMI/ANSI ES 60601-1 and IEC/EN 60601-1 3rd edition, and IT and industrial safety according to IEC/EN/UL 62368-1 and UL 508.
The dimensions are 96.0mm x 54.1mm x 23.4mm.
