| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Protection | |
| SVHC Present | |
| Type | |
| Voltage |

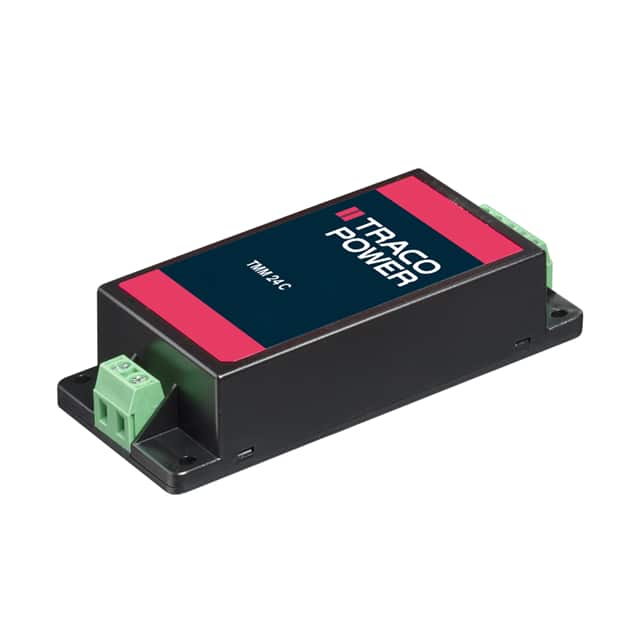

The Traco Power TMM 24115C is a 24 Watt AC/DC power supply module from the TMM 24C Series. It is fully encapsulated in a low-profile plastic casing designed for chassis mounting.
This power supply offers a universal AC input range of 85-264 VAC and provides a single 15Vdc output at 1.6A, delivering a total of 24W. It boasts an efficiency of 82% and features adjustable output and universal input capabilities. The operating temperature range is -40°C to 80°C, with derating applied at higher temperatures. It is specified to start up at -40°C.
Designed for demanding applications, the TMM 24115C meets stringent safety standards, including 2 x MOPP medical safety according to AAMI/ANSI ES 60601-1 and IEC/EN 60601-1 3rd edition. It also complies with IT and industrial safety standards IEC/EN/UL 62368-1 and UL 508. The unit includes protection against over-temperature, overload, and short circuits. It is prepared for Safety Class II.
Key specifications include a 4 kV isolation voltage, dimensions of 96.0mm x 54.1mm x 23.4mm, and a no-load power consumption ready to meet the ErP directive (<0.3 W). The product comes with a 3-year warranty.
The TMM 24115C provides a nominal output voltage of 15VDC with a maximum continuous current of 1.6A.
Yes, the converter accepts a universal AC input range of 85 to 264 VAC or a DC input range of 120 to 370 VDC.
The unit features a 4kV isolation voltage between input and output, meeting safety requirements for industrial and medical applications.
The TMM 24115C uses a chassis mount configuration and has an enclosed form factor measuring 96.0mm x 54.1mm x 23.4mm.
The converter operates reliably from -40°C to 80°C, though full rated power is maintained only up to 65°C without load derating.
Yes, it holds medical safety certification for 2 x MOPP compliance according to AAMI/ANSI ES 60601-1:2005(R) and IEC/EN 60601-1 3rd edition.
The power supply includes built-in protection against over-temperature conditions, output overload, and short circuits.
