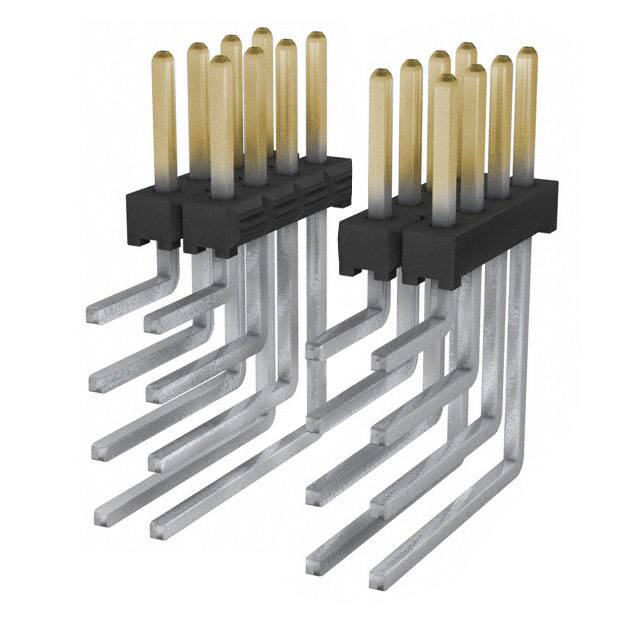

The Samtec TMM-125-01-S-Q-RA is a 2.00mm (.079") pitch low profile pin header from the TMM series. This connector features 100 positions in 4 rows with a right angle orientation and through-hole termination. The header uses square phosphor bronze male pins with 30µ" (0.76µm) gold plating on the post and matte tin on the tail, providing reliable electrical contact.
Rated at 3.2A per contact (2 pins powered) with a voltage rating of 281 VAC when mated with SQW, this header supports data rates up to 8 Gbps. The black LCP (Liquid Crystal Polymer) insulator withstands operating temperatures from -55°C to +125°C, making it suitable for demanding environments.
Designed for board-to-board or cable applications, the TMM-125-01-S-Q-RA mates with Samtec’s CLT, SQT, SQW, ESQT, TLE, SMM, and MMS series receptacles, as well as TCSD cable assemblies. Its unshrouded push-pull fastening system and right-angle mounting simplify PCB layout in space-constrained designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $15.16 | $15.16 |
| 11+ | $13.33 | $13.33 |
| 55+ | $12.42 | $12.42 |
| 110+ | $11.18 | $11.18 |
| 253+ | $10.10 | $10.10 |
| 506+ | $9.14 | $9.14 |
| 1,001+ | $8.99 | $8.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
100 positions arranged in 4 rows (25 per row).
2.00mm (0.079").
3.2 A per contact (2 pins powered).
281 VAC when mated with SQW.
Through hole, right angle.
