| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11 pcs
|
11 pcs | On Request | 1 | On Request | On Request | 414 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

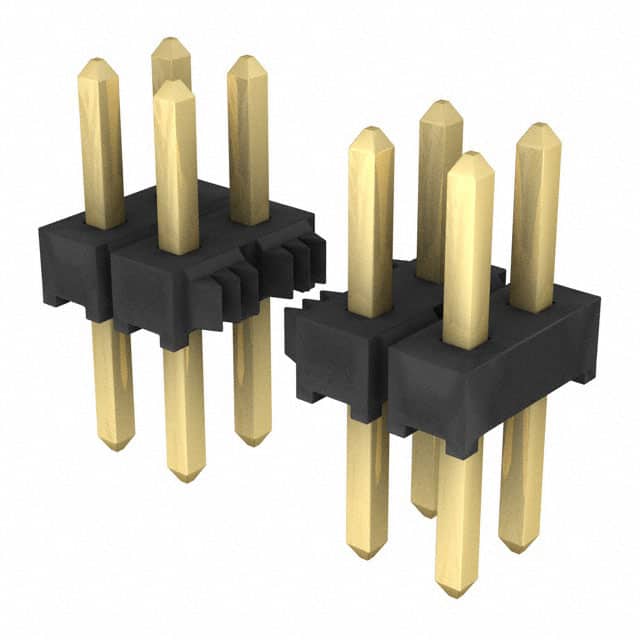

The TMM-122-03-G-D is a 2.00mm pitch low profile pin header from Samtec's TMM series. It features 44 positions arranged in 2 rows, with a through hole termination style. The header is unshrouded and designed for board-to-board or cable applications.
Key specifications include a current rating of 3.2A per row (with 2 pins powered), voltage rating of 281 VAC when mated with SQW or 250 VAC with SQT, and an operating temperature range of -55°C to +125°C. The contacts are made of phosphor bronze with gold flash plating (10 µin) on the post and matte tin on the tail.
The insulator is black liquid crystal polymer (LCP) with a height of 1.50mm. The overall contact length is 4.00mm (lead style -03). The part is supplied in bulk packaging. It is RoHS3 compliant (unverified) and has an MSL of 1.
This header is suitable for applications requiring a low profile, high-density interconnect. It mates with Samtec's CLT, SQT, SQW, ESQT, TLE, SMM, MMS series for board-to-board, and TCSD for cable connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.56 | $6.56 |
| 25+ | $6.19 | $6.19 |
| 50+ | $5.57 | $5.57 |
| 100+ | $5.23 | $5.23 |
| 500+ | $4.65 | $4.65 |
| 1,000+ | $4.28 | $4.28 |
| 2,500+ | $3.92 | $3.92 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
44 positions.
2.00mm (0.079 inches).
3.2A per row (with 2 pins powered).
281 VAC when mated with SQW, 250 VAC when mated with SQT.
Through hole.
-55°C to +125°C.
Gold flash (10 µin) on post, matte tin on tail.
