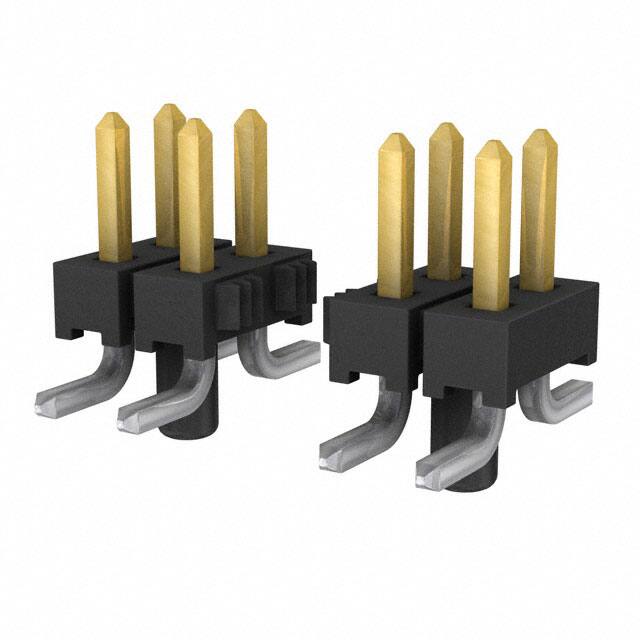

The TMM-120-01-S-D-SM-A is a 40-position, 2-row unshrouded header manufactured by Samtec Inc. It features a 2.00mm pitch and 2.00mm row spacing, making it suitable for board-to-board or cable-to-board connections in compact electronic designs. The contacts are made of phosphor bronze with a tin finish (30.0µin), and each contact is rated for 3.2A of current. The header uses surface mount solder termination and includes an alignment pin and a pick-and-place pad for automated assembly. The insulator is black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating. The operating temperature range is -55°C to 125°C, and the component is lead-free solderable. The voltage rating depends on the mating connector: 281 VAC when mated with SQW series and 250 VAC when mated with SQT series. This product is RoHS3 compliant (unverified) and has an MSL of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.66 | $7.66 |
| 10+ | $6.72 | $6.72 |
| 28+ | $6.58 | $6.58 |
| 56+ | $6.33 | $6.33 |
| 112+ | $5.49 | $5.49 |
| 252+ | $5.27 | $5.27 |
| 504+ | $4.46 | $4.46 |
| 1,008+ | $3.97 | $3.97 |
| 2,002+ | $3.65 | $3.65 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 40 positions, all loaded, in 2 rows.
The pitch is 2.00mm and the row spacing is also 2.00mm.
The current rating is 3.2A per contact.
The voltage rating is 281 VAC when mated with SQW series and 250 VAC when mated with SQT series.
It is surface mount with solder termination.
The operating temperature range is -55°C to 125°C.
The contact material is phosphor bronze with a tin finish of 30.0µin (0.76µm).
