Mfr Part #:

TMM-113-03-L-D

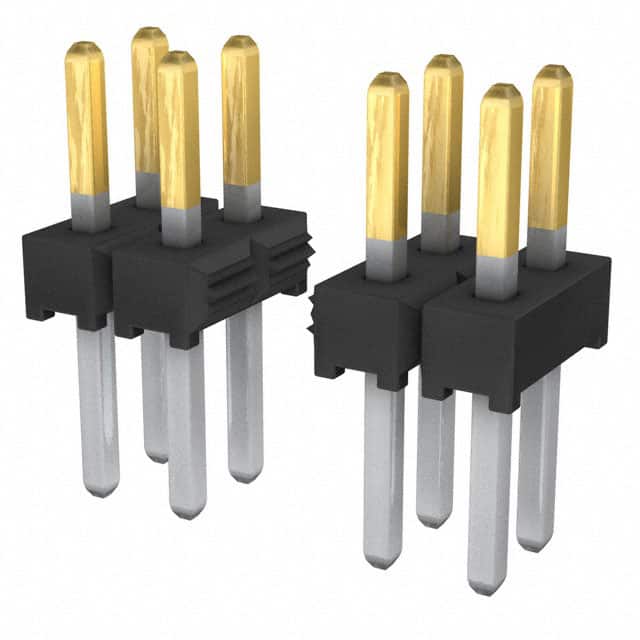

26-position, 2-row unshrouded male pin header from Samtec's TMM series with 2.00mm pitch. Designed for through-hole mounting and solder termination.

✓ Total Stock: 396 pcs

$ Price Range: $0.79 - $2.78

TMM-113-03-L-D Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Braun Electronic Components ✓ Non-Authorised Inventory information	396 pcs On Request	396 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

TMM-113-03-L-D Description

Short technical summary and product information.

The Samtec TMM-113-03-L-D is a 26-position, 2-row unshrouded male pin header part of the TMM series. It features a 2.00mm pitch and 2.00mm row spacing, making it suitable for compact board-to-board or cable interconnects. The header uses phosphor bronze contacts with a tin finish (gold flash on post, matte tin on tail) and is rated for 3.2A per contact. The voltage rating is 281VAC when mated with the SQW series. The operating temperature range is -55°C to 125°C with gold plating. The insulator is black liquid crystal polymer (LCP) with a height of 1.50mm. The header is through-hole mounted with solder termination and uses a push-pull fastening mechanism. It is designed for mating with Samtec CLT, SQT, SQW, ESQT, TLE, SMM, MMS (board) and TCSD (cable) series.

TMM-113-03-L-D Quick Information

Product Type: Header, Male Pins

Series: TMM

Canonical Name: 26 Position, 2 Row, 2.00mm Pitch, Unshrouded, Through Hole, Male Pin Header

Subcategory: Unshrouded Header

TMM-113-03-L-D Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Lead-Free Solderable: Yes

TMM-113-03-L-D Estimated Pricing

Qty	Low	High
1+	$2.78	$2.78
50+	$2.53	$2.53
100+	$2.15	$2.15
500+	$1.87	$1.87
1,000+	$1.54	$1.54
2,000+	$1.33	$1.33
5,000+	$1.06	$1.06
10,000+	$0.79	$0.79

Estimated market price range - modelled values for guidance only, not live distributor offers.

TMM-113-03-L-D Features

26-position, 2-row unshrouded header.
2.00mm pitch for compact designs.
Through-hole solder termination.
Phosphor bronze contacts with tin finish.
Rated for 3.2A per contact.

TMM-113-03-L-D Applications

Board to board or cable applications.
Ideal for 2.00mm pitch interconnects.
Suitable for industrial and consumer electronics.

TMM-113-03-L-D FAQs

7 frequently asked questions generated from this part’s specifications.

What is the number of positions on TMM-113-03-L-D?

26 positions, all loaded.

What is the pitch of this header?

2.00mm.

What is the current rating?

3.2A per contact.

What is the voltage rating?

281VAC when mated with SQW.

What is the mounting type?

Through hole, solder termination.

What is the operating temperature range?

-55°C to 125°C with gold plating.

What is the contact material and finish?

Phosphor bronze with tin finish (10µ" gold on post, matte tin on tail).

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header
Contact Finish	Tin
Contact Finish Thickness	0.25µm
Contact Length	4.00mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3.2A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	1.50mm
Insulation Material	Liquid Crystal Polymer (LCP)
Lead Style	-03
Mounting Type	Through Hole
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C to 125°C
Overall Contact Length	8.20mm
Pitch	2.00mm
Row Spacing	2.00mm
SVHC Present	Not Present
Shrouding	Unshrouded
Style	Board to Board or Cable
Tape & Reel	No
Termination	Solder
Termination Style	Solder
Voltage Rating	281VAC
